Запчасти Case IH FARMALL 90 (1.82.1[01]) - LIFT - PIPES & PARTS - C6413 (07) - HYDRAULIC SYSTEM

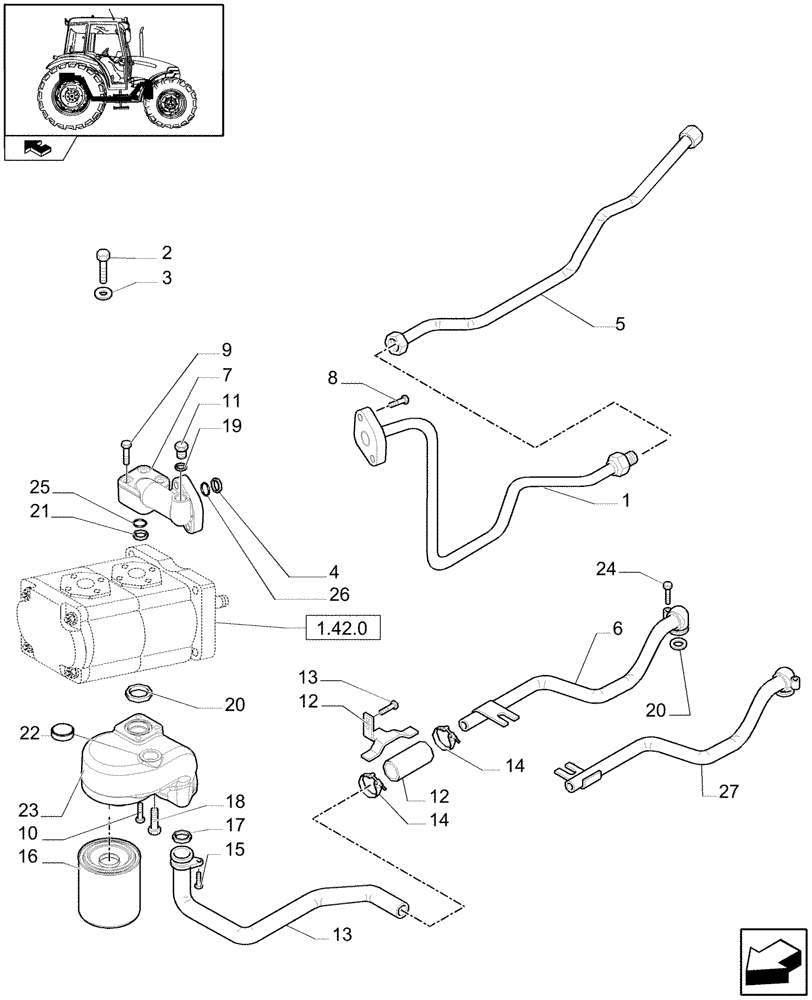

Схема запчастей Case IH FARMALL 90 - (1.82.1[01]) - LIFT - PIPES & PARTS - C6413 (07) - HYDRAULIC SYSTEM
19
13
12
25
20
26
14
12
21
10
14
1
6
23
15
8
5
9
16
11
2
24
13
22
17
1.42.0
18
27
20
home
4
7
3

Артикул

Название

Примечание

Количество

1

87618894

TUBE

Delivery, Front, Serial Range: -C6066

1шт.

1

84121910

TUBE

, Start Serial: D6066

1шт.

2

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

1шт.

3

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

4

87307155

SEAL,27mm ID x 28mm OD x 2.2mm Thk

27 x 0.5

1шт.

5

87618903

TUBE

1-3/16"-12, Delivery, Rear, Serial Range: -C6066

1шт.

5

84121912

HYD TUBE,12.7mm ID x 960mm L, SAE 100R2

, Start Serial: D6066

1шт.

6

87618905

PIPE

Oil Section, Rear, Serial Range: -C6263

1шт.

7

87353468

MANIFOLD

1шт.

8

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

2шт.

9

14305624

HEX SOC SCREW,M6 x 35mm, Cl 8.8

3шт.

10

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

12

87626258

FUEL HOSE,45.00 mm ID x 90.00 mm, SAE J200

1шт.

13

87618888

PIPE

Oil Suction, Front

1шт.

14

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

D=40-60

2шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

47131195

HYDRAULIC OIL FILTER

1шт.

Valid with FARMALL 90, JX90, JX95 Models

1шт.

17

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

18

14309020

HEX SOC SCREW,M8 x 1 x 70mm, Cl 8.8

1шт.

19

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER

1шт.

20

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

2шт.

21

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.

22

14328801

PLUG,M22, Tapered

1шт.

23

47129567

FILTER HEAD

1шт.

24

15541221

SCREW,Hex, M12 x 1.25 x 70mm, Cl 8.8

1шт.

25

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

26

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

27

84216740

PIPE

Oil Suction Rear, Start Serial: D6263

1шт.

Выбрано товаров: 30
