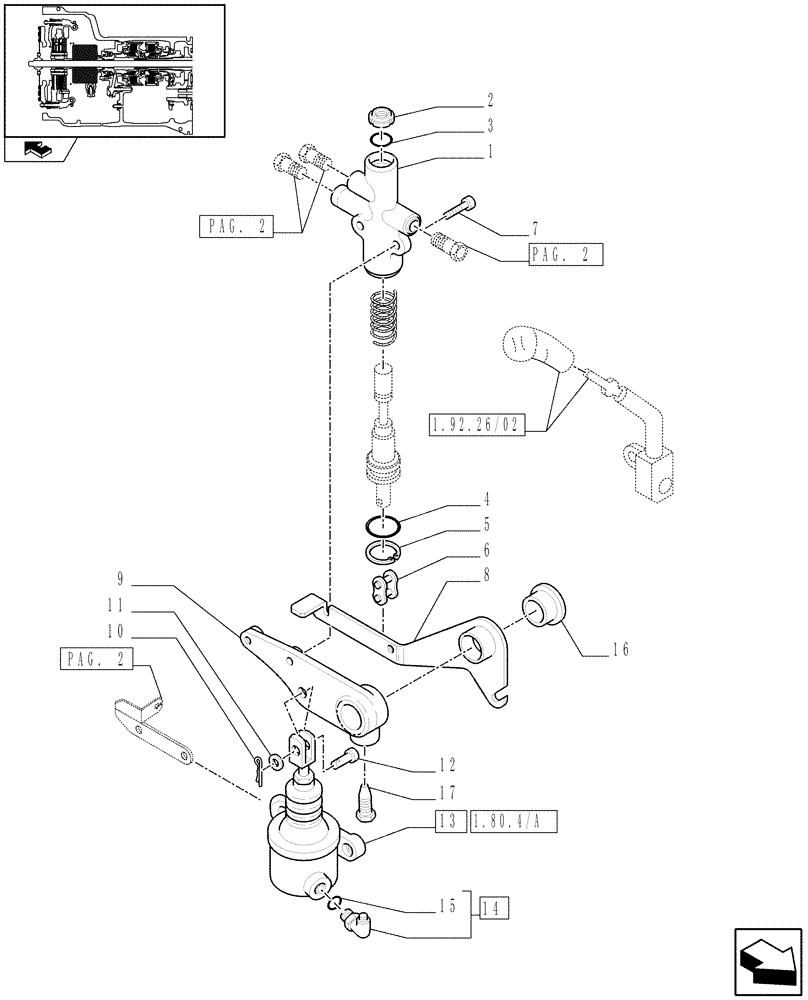

Запчасти Case IH FARMALL 90 (1.80.4[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - PTO ENGAG.CLUTCH,SERVOCONT. (VAR.330120-331120) (07) - HYDRAULIC SYSTEM

1

5185025

HYDRAULIC VALVE

ASSY, Incl. 2, 3, 4, 5

1шт.

2

5114359

SCRAPER RING,Locking, 12mm ID x 18mm OD x 5mm Thk

1шт.

3

5192732

O-RING,11.91mm ID

1шт.

4

1445718

1шт.

5

11057876

SNAP RING,M20, Int

1шт.

6

5185788

LINK,8.7mm Pitch

1шт.

7

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

8

5185806

LEVER

Incl. 16

1шт.

9

5183637

LEVER

1шт.

10

10734201

COTTER PIN,M2 x 12

1шт.

11

13550301

WASHER

8x18

1шт.

12

10050814

PIN,M8 x 22 L

1шт.

13

84332855

CONTROL VALVE

ASSY

1шт.

14

87616449

HYD CONNECTOR

1шт.

15

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

16

5185794

BUSHING,24.02mm ID x 29mm OD x 17mm L

1шт.

17

4968813

BOLT,Hex, M16 x 1.5 x 32mm

M16x1.5x32

1шт.
