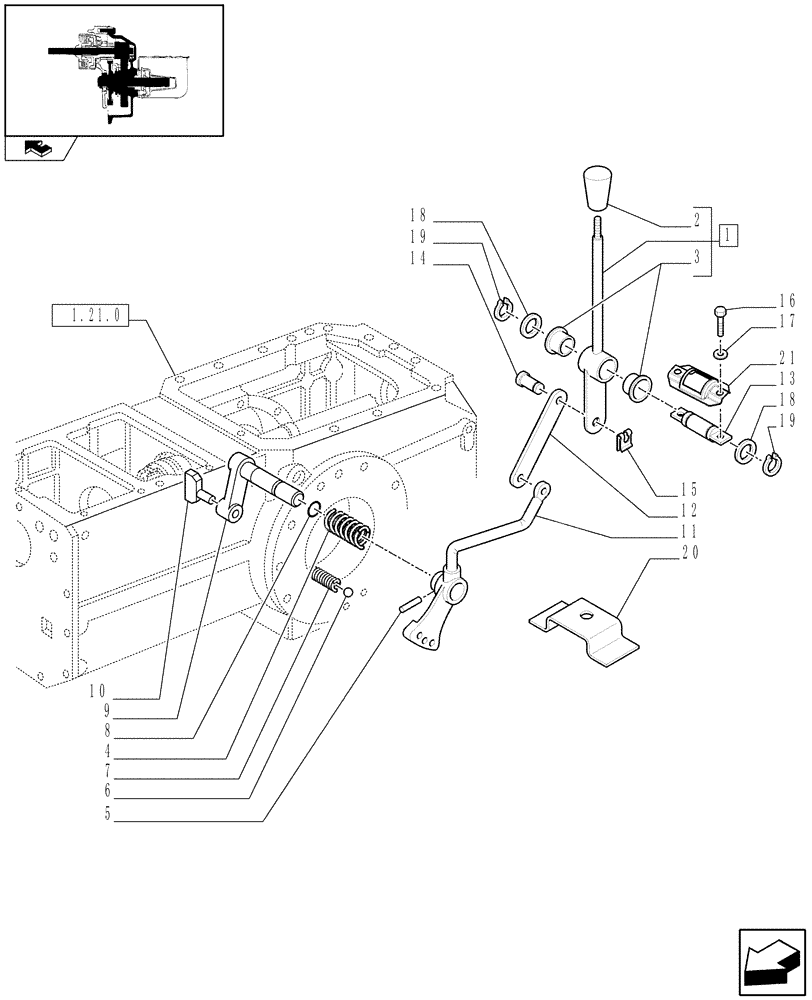

Запчасти Case IH FARMALL 90 (1.80.2) - POWER TAKE-OFF CONTROLS (07) - HYDRAULIC SYSTEM

1

5094548

LEVER

1шт.

2

5087838

KNOB

1шт.

3

5089036

BUSHING,18mm ID x 22mm OD x 15.5mm L

2шт.

4

580548

SPRING

1шт.

5

13910370

ROLL PIN,6mm OD x 30mm L

1шт.

6

20063390

BALL,8.73mm OD

1шт.

7

4994342

SPRING,8mm OD x 30mm OAL

1шт.

8

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

9

5129848

LEVER

1шт.

10

4984096

CONTROL LEVER,10mm OD x 40mm L

1шт.

11

5094439

ARM

1шт.

12

5094550

ARM

1шт.

13

5089034

LEVER

1шт.

14

5092892

PIN,9.99mm OD x 18.9mm L

10x21x2

2шт.

15

11064174

CLIP

2x22

2шт.

16

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

17

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

18

5089106

WASHER,18.2mm ID x 27mm OD x 1mm Thk

2шт.

19

11066676

SNAP RING,M18, Ext

2шт.

20

5095547

SUPPORT

W/CAB

2шт.

21

5094622

GASKET

W/CAB

1шт.
