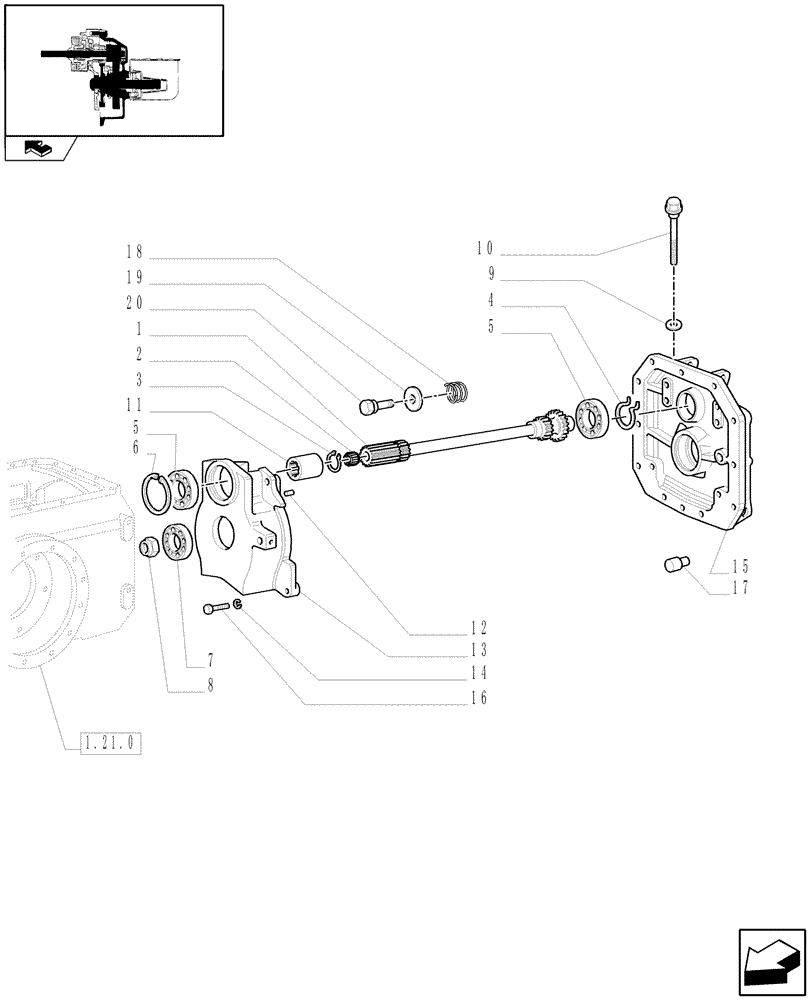

Запчасти Case IH FARMALL 90 (1.80.1/04[01]) - POWER TAKE-OFF 540/1000 NA WITH 2 PTO ENDS AND NA SELECTION SPEED SYSTEM (VAR.335959) (07) - HYDRAULIC SYSTEM

1

87558675

PTO SHAFT

1шт.

2

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

15x21x16

1шт.

3

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

4

83953236

SNAP RING,3.23mm Thk, Int

1шт.

5

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

2шт.

6

11062476

SNAP RING,M90, Int

1шт.

7

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35x80x21

1шт.

8

5122985

NUT,Ring, M32, 1.5 Pitch

M32x1.5

1шт.

9

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

10

47134050

DIPSTICK

1шт.

11

5198038

SLEEVE,12T

1шт.

12

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

13

5093103

SUPPORT

1шт.

14

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

15

87307210

HOUSING

1шт.

16

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

17

14328504

PLUG

1шт.

18

47127604

SPRING,Compression, 31mm OD x 33.3mm L

1шт.

19

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

20

47130774

PIN,13.5mm OD x 22mm L

1шт.
