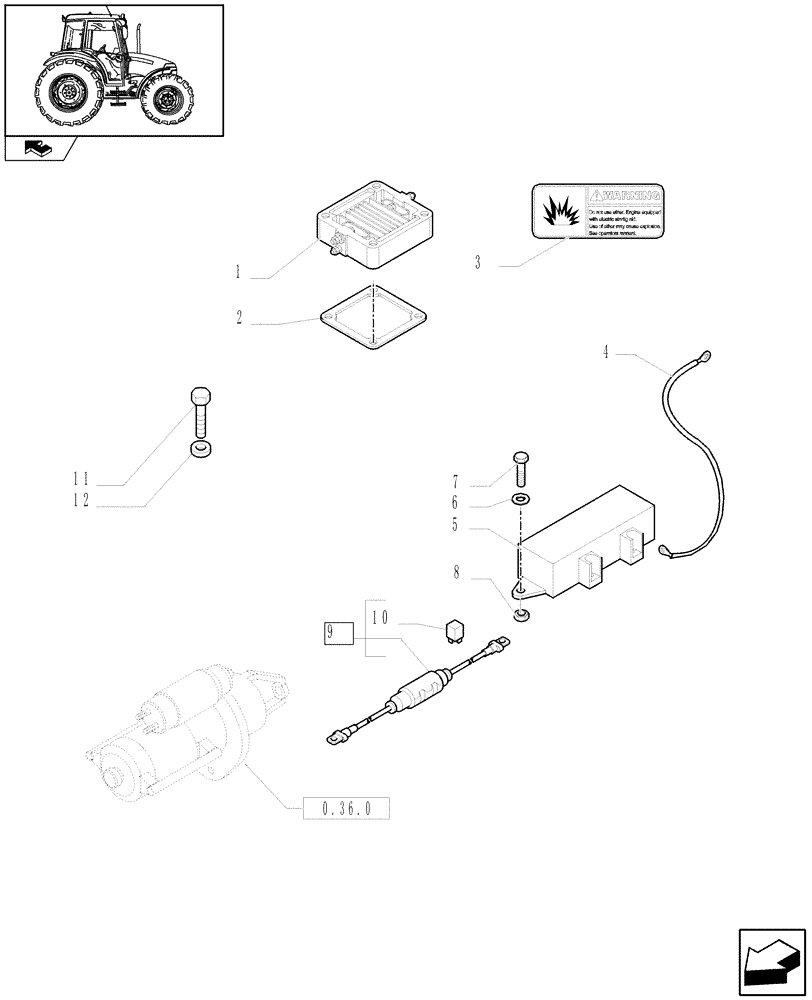

Запчасти Case IH FARMALL 90 (1.75.4/01) - AIR HEATER ENGINE STARTING AID - HEATER, CABLES AND BRACKETS (VAR.330204) (06) - ELECTRICAL SYSTEMS

1

2831019

HEATER,24V

1шт.

2

4899921

GASKET,1.2mm Thk

2шт.

3

87803277

WARNING DECAL

1шт.

4

87697034

ELECTRIC CABLE

1шт.

5

82022813

RELAY,12V, High Current

1шт.

6

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

7

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

8

12574211

NUT,M6 x 1, Cl 8

2шт.

9

87697032

ELECTRIC CABLE

1шт.

10

5080123

FUSE

80A, Serial Range: -C6617

1шт.

10

10404290

FUSE

80A, Start Serial: D6617

1шт.

11

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

12

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.
