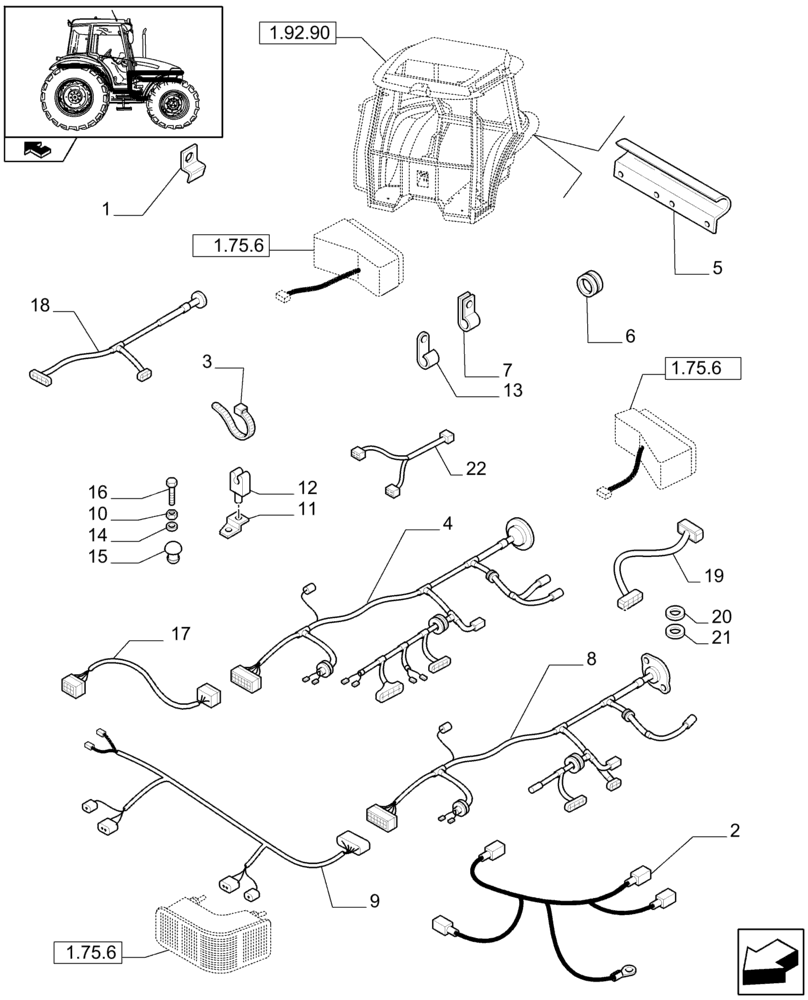

Запчасти Case IH FARMALL 90 (1.75.4[02A]) - AUXILIARY CABLES - D6480 (06) - ELECTRICAL SYSTEMS

1

5093416

CLIP

2шт.

2

5094098

WIRE HARNESS

Steering Low Pressure Alarm

1шт.

3

5112712

COLLAR,M4.8 x 283

D=290

10шт.

4

84241036

WIRE HARNESS

Chassis, Serial Range: -C6839

1шт.

Std Eqipment also for Hight Clearance Version, W/CAB

1шт.

4

84369153

WIRE HARNESS

W/CAB, Chassis, Start Serial: D6839

1шт.

Std Eqipment also for Hight Clearance Version, W/CAB

1шт.

4

84369155

WIRE HARNESS

L/CAB, Chassis, Start Serial: D6839

1шт.

4

84249667

WIRE HARNESS

L/CAB, Chassis, Start Serial: D6752

1шт.

Std Eqipment also for Hight Clearance Version, W/CAB

1шт.

5

5093288

COVER

2шт.

6

5093911

GROMMET

, Serial Range: -C7005

2шт.

7

5087916

CLAMP

1шт.

8

84241037

WIRE HARNESS

W/CAB, Chassis

1шт.

NA Package, VAR.330007

1шт.

8

84262197

WIRE HARNESS

L/CAB, Chassis, Serial Range: D6752-C6980

1шт.

NA Package, VAR.330007

1шт.

8

84337756

WIRE HARNESS

L/CAB, Chassis, Start Serial: D6980

1шт.

NA Package, VAR.330007

1шт.

9

5097459

WIRE HARNESS

Head Lamp

1шт.

10

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

11

5121360

LOCKING PLATE

1шт.

12

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

1шт.

13

5088304

CLAMP

1шт.

14

12601174

WAVE WASHER,Wave, M4.3

3шт.

15

5093850

PLUG,9mm OD

2шт.

16

10390211

SCREW,Sl Pan Hd, M5 x 35mm, Cl 5.8

3шт.

17

84173672

ELECTRIC CABLE

1шт.

18

84369156

WIRE HARNESS

Forward - Revers and Servo PTO

1шт.

Valid for Power Shuttle e Servo PTO, VAR.330120-331120

1шт.

19

84331265

WIRE HARNESS

Seat Switch Cable

1шт.

L/CAB

1шт.

20

10615774

WASHER

, Start Serial: D6752

1шт.

21

12598374

LOCK WASHER

, Start Serial: D6752

1шт.

22

47365084

CABLE

Ground Speed PTO

1шт.
