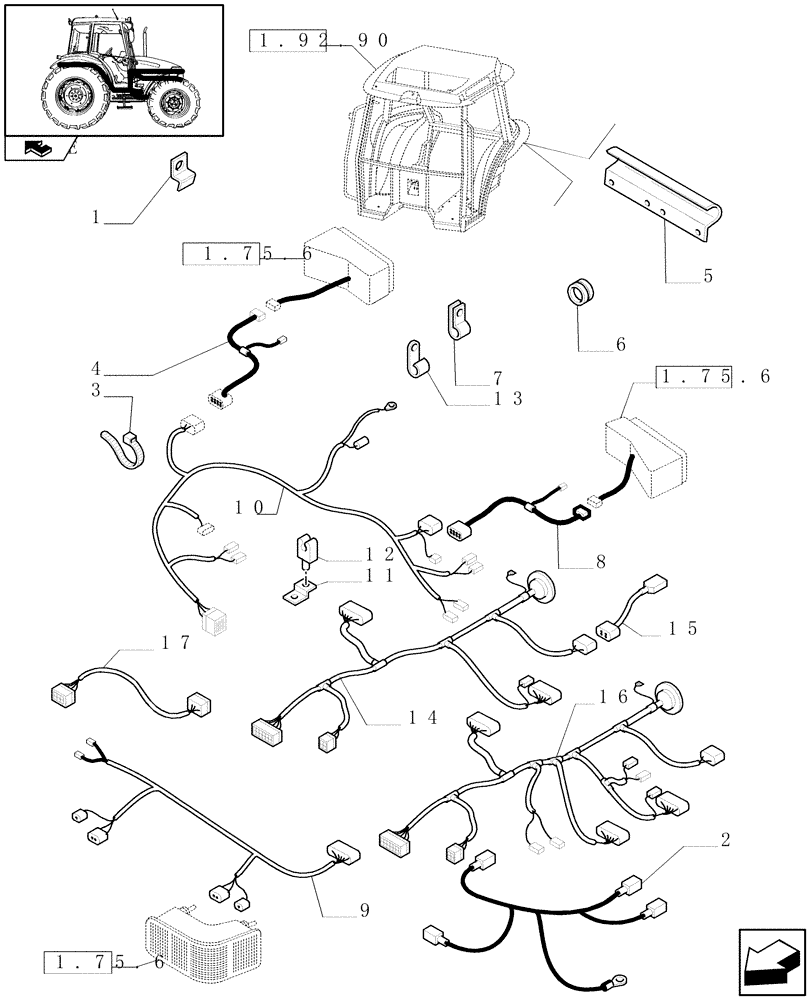

Запчасти Case IH FARMALL 90 (1.75.4[02]) - AUXILIARY CABLES - C6480 (06) - ELECTRICAL SYSTEMS

1

5093416

CLIP

2шт.

2

5094098

WIRE HARNESS

Steering Low Pressure Alarm

1шт.

3

5112712

COLLAR,M4.8 x 283

D=290

10шт.

4

87392856

WIRE HARNESS

Right Wing

1шт.

4

87392840

WIRE HARNESS

Right Wing

1шт.

NA Package, VAR.330007

1шт.

5

5093288

COVER

2шт.

6

5093911

GROMMET

2шт.

7

5087916

CLAMP

1шт.

8

87392857

WIRE HARNESS

Left Wing

1шт.

8

87392843

WIRE HARNESS

Left Wing

1шт.

NA Package, VAR.330007

1шт.

9

5097459

WIRE HARNESS

Head Lamp

1шт.

10

87392837

WIRE HARNESS

Chassis, Serial Range: -C5959

1шт.

10

87392838

WIRE HARNESS

Chassis, Serial Range: -C5959

1шт.

NA Package, VAR.330007

1шт.

11

5121360

LOCKING PLATE

1шт.

12

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

1шт.

13

5088304

CLAMP

1шт.

14

84148265

WIRE HARNESS

Chassis, Start Serial: D5959

1шт.

Std Eqipment also for Hight Clearance Version, W/CAB

1шт.

14

84148266

WIRE HARNESS

Chassis, Serial Range: D5959-C6280

1шт.

NA Package, VAR.330007

1шт.

14

84130832

WIRE HARNESS

, Start Serial: D6280

1шт.

NA Package, VAR.330007

1шт.

15

84148268

ELECTRIC CABLE

Hand Brake, Start Serial: D5959

1шт.

Std Eqipment also for Hight Clearance Version, W/CAB

1шт.

15

84148269

ELECTRIC CABLE

Hand Brake, Start Serial: D5959

1шт.

NA Package, VAR.330007

1шт.

16

84130831

WIRE HARNESS

1шт.

Rear Electrohydraulic Diff. Lock and Electrohydraulic 4WD Engagement; VAR.330384 (743909)

1шт.

17

84173672

ELECTRIC CABLE

1шт.
