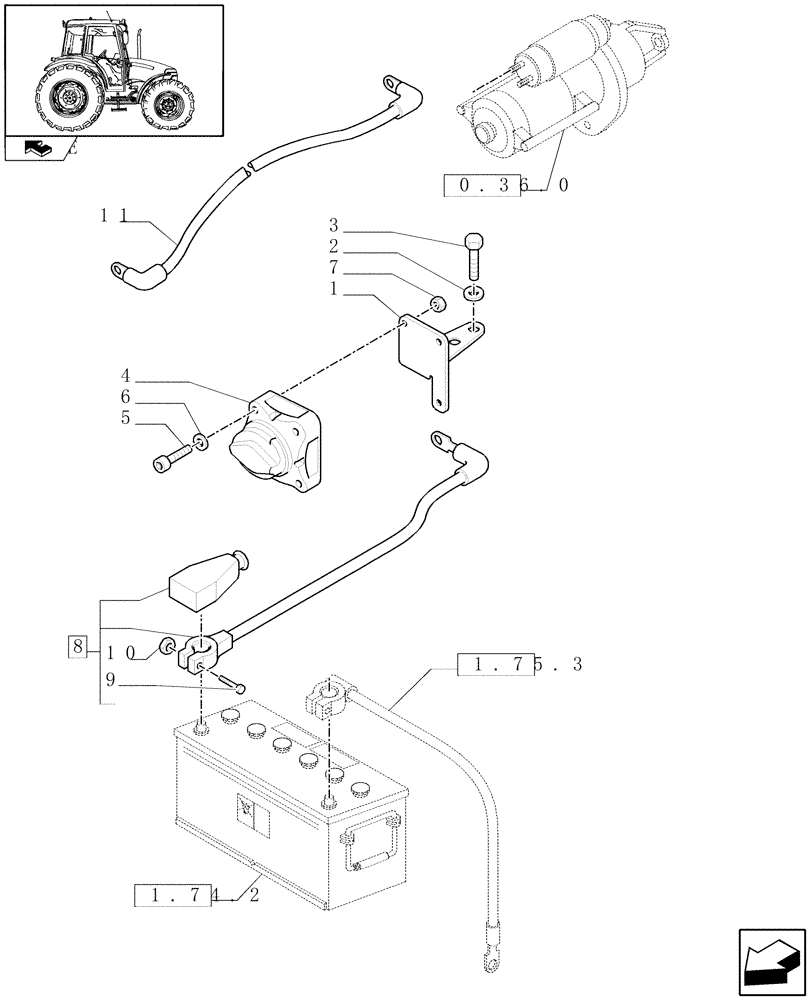

Запчасти Case IH FARMALL 90 (1.75.3/01) - MECHANICAL BATTERY ISOLATOR (VAR.331798) (06) - ELECTRICAL SYSTEMS

1

87677803

SUPPORT

1шт.

2

12601674

WAVE WASHER,Wave, M15

2шт.

3

11115321

SCREW,Hex, M14 x 25mm, Cl 8.8, Full Thd

2шт.

4

82022881

BATTERY CUT-OUT

1шт.

5

10390311

BOLT

3шт.

6

12601174

WAVE WASHER,Wave, M4.3

3шт.

7

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

8

87719100

ELECTRIC CABLE

1шт.

9

11945008

SCREW,Sqr Head, M6 x 1 x 30mm

1шт.

10

15896218

NUT,Hex, M6 x 1

1шт.

11

87677799

CABLE

1шт.
