(1.75.0[03]) - ELECTRIC CONTROLS

Запчасти Case IH FARMALL 90 (1.75.0[03]) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

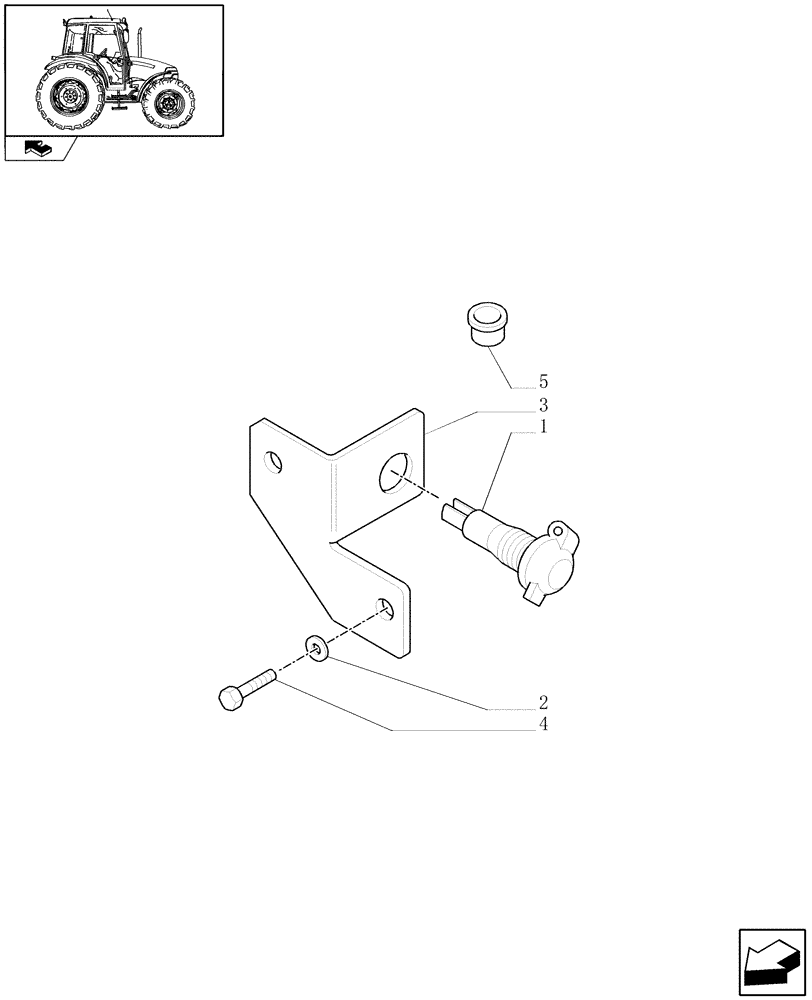

Схема запчастей Case IH FARMALL 90 - (1.75.0[03]) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS
1
5
home
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84191453

SOCKET,12/24V, 20A

L/CAB

1шт.

EC-Socket Assy Auxiliary Electric Power

1шт.

2

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

3

5089484

SUPPORT

L/CAB

1шт.

4

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

87573793

CUP PLUG,7mm OD, 7mm High, 0.80mm Thk

D=7, W/CAB

3шт.
