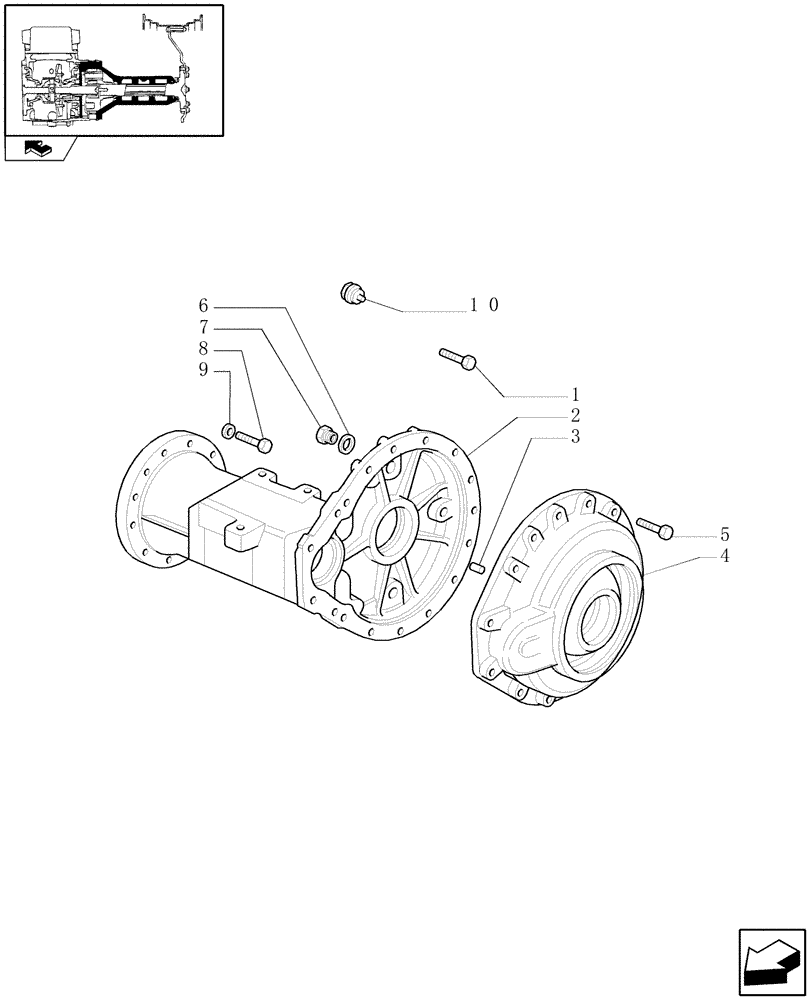

Запчасти Case IH FARMALL 90 (1.48.1[03]) - SIDE REDUCER BOX AND COVERS (05) - REAR AXLE

1

15541024

BOLT,Hex, M12 x 1.25 x 60mm, Cl 8.8

5шт.

2

5098564

FINAL DRIVE HOUSING

RH, 90 Model, Standard Clearence

2шт.

2

5098575

FINAL DRIVE HOUSING

LH, 90 Model, Standard Clearence

2шт.

2

5098566

FINAL DRIVE HOUSING

RH, 95 Model, Standard Clearence

1шт.

2

5098578

FINAL DRIVE HOUSING

LH, 95 Model, Standard Clearence

2шт.

3

10839910

DOWEL,15mm OD x 20mm L

4шт.

4

5140205

COVER

90 Model

2шт.

4

5089364

COVER

95 Model

2шт.

5

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

30шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

6шт.

7

10305171

PLUG,M22 x 1.5 x 21

4шт.

8

15540831

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

17шт.

9

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

22шт.

10

84209347

PLUG

Magnetic

2шт.
