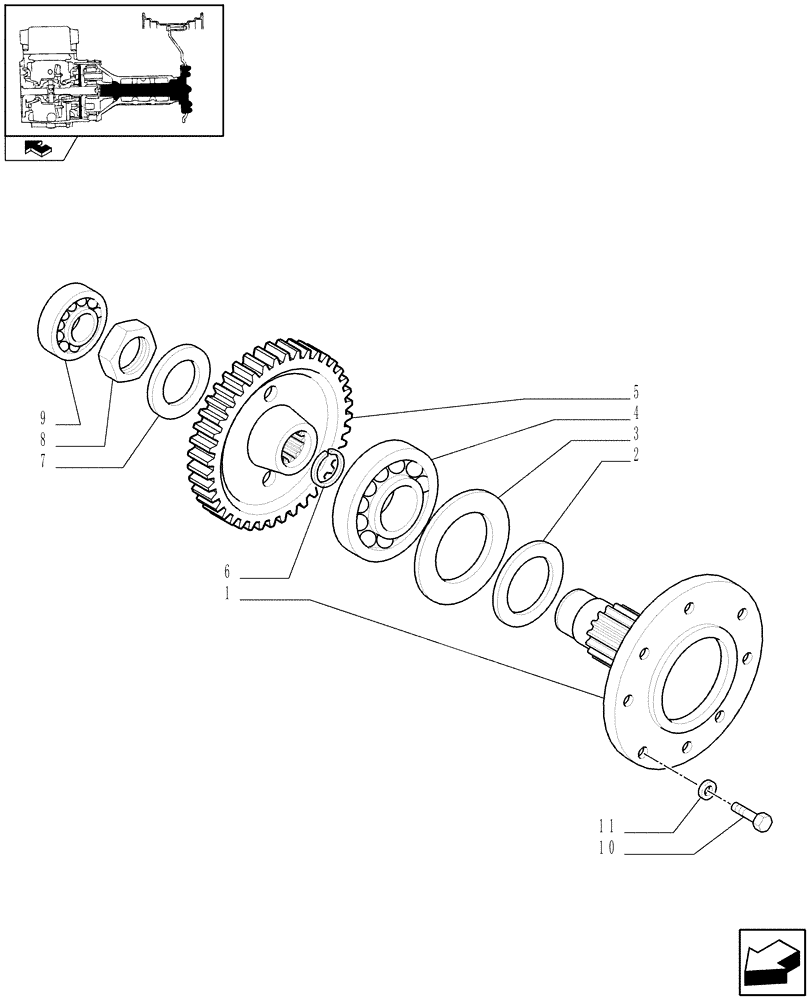

Запчасти Case IH FARMALL 90 (1.48.1[02]) - SIDE REDUCER GEARINGS - SHAFT AND GEARS (05) - REAR AXLE

1

5146834

CONTROL SHAFT

90 Model

2шт.

1

5089368

SHAFT

95 Model

2шт.

1

5142885

CONTROL SHAFT

90 Model

1шт.

Waterproof Transmission, VAR.330449

1шт.

1

5092812

SHAFT

95 Model

1шт.

Waterproof Transmission, VAR.330449

1шт.

2

5131916

SEAL,85mm ID x 110mm OD x 16mm Thk

85x110x16

2шт.

2

5142887

SET OF RINGS,94mm ID x 125.8mm OD x 29mm Thk

94x125.8x28

1шт.

Waterproof Transmission, VAR.330449

1шт.

3

5109810

WASHER, THRUST,100mm ID x 146mm OD x 1.5mm Thk

2шт.

4

26794770

BALL BEARING,70mm ID x 150mm OD x 35mm W

2шт.

5

5128907

DRIVEN GEAR

90 Model

2шт.

5

5089367

GEAR

95 Model

2шт.

6

84400879

CIRCLIP,M150 x 4mm Thk, Int

2шт.

7

5109858

WASHER,61mm ID x 100mm OD x 1.5mm Thk

2шт.

8

5140202

NUT,M60 x 2

90 Model

2шт.

8

5089369

NUT

95 Model

2шт.

9

20065730

BALL BEARING,55mm ID x 120mm OD x 29mm W

55 x 120 x 29

2шт.

10

15983831

BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9

16шт.

11

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.
