(1.42.0/ A) - HYDRAULIC PUMP - BREAKDOWN

Запчасти Case IH FARMALL 90 (1.42.0/ A) - HYDRAULIC PUMP - BREAKDOWN (04) - FRONT AXLE & STEERING

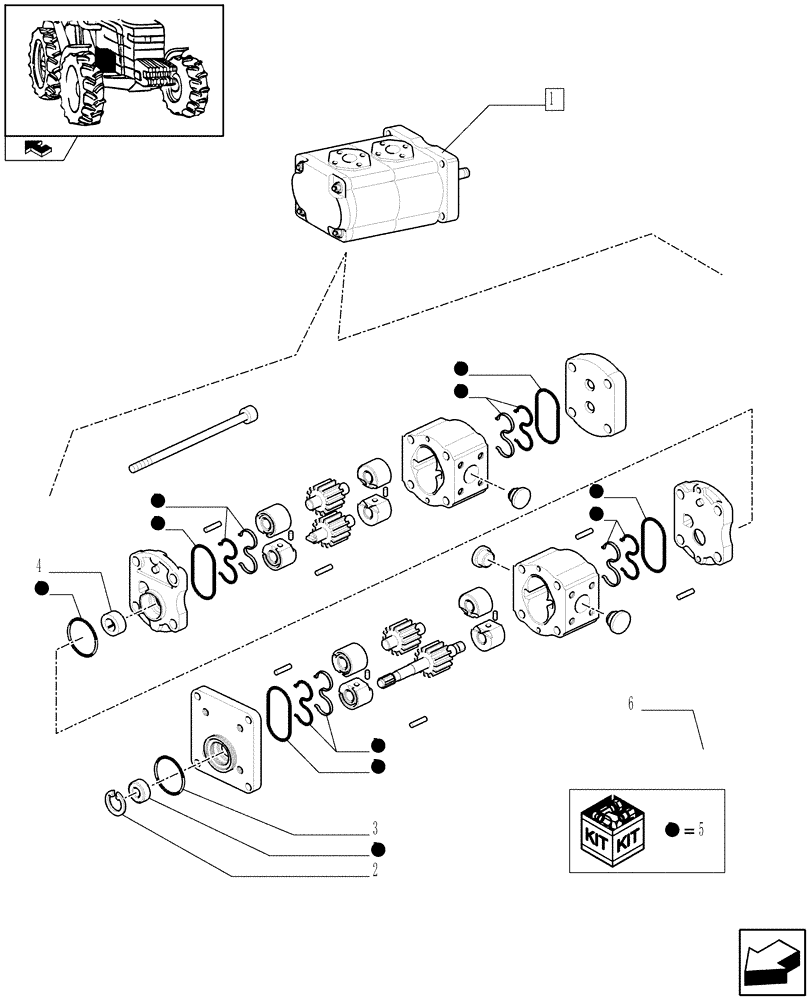

Схема запчастей Case IH FARMALL 90 - (1.42.0/ A) - HYDRAULIC PUMP - BREAKDOWN (04) - FRONT AXLE & STEERING
5
5
5
6
5
5
5
5
2
5
4
5
1
5
5
3
5
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47129337

HYDRAULIC PUMP,DOUBLE, 19.55 CC + 11.26 CC

ASSY

1шт.

47129337R

REMAN-HYD PUMP

FARMALL 90, FARMALL 95 Both TIER 3 (1/07-)

1шт.

47129337C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

11058870

CIRCLIP,30mm ID

30x1.2

1шт.

3

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

4

87311810

BUSHING

1шт.

5

47132368

SEAL KIT

1шт.

6

87311809

SEAL

1шт.
