(1.42.0) - HYDRAULIC PUMP

Запчасти Case IH FARMALL 90 (1.42.0) - HYDRAULIC PUMP (04) - FRONT AXLE & STEERING

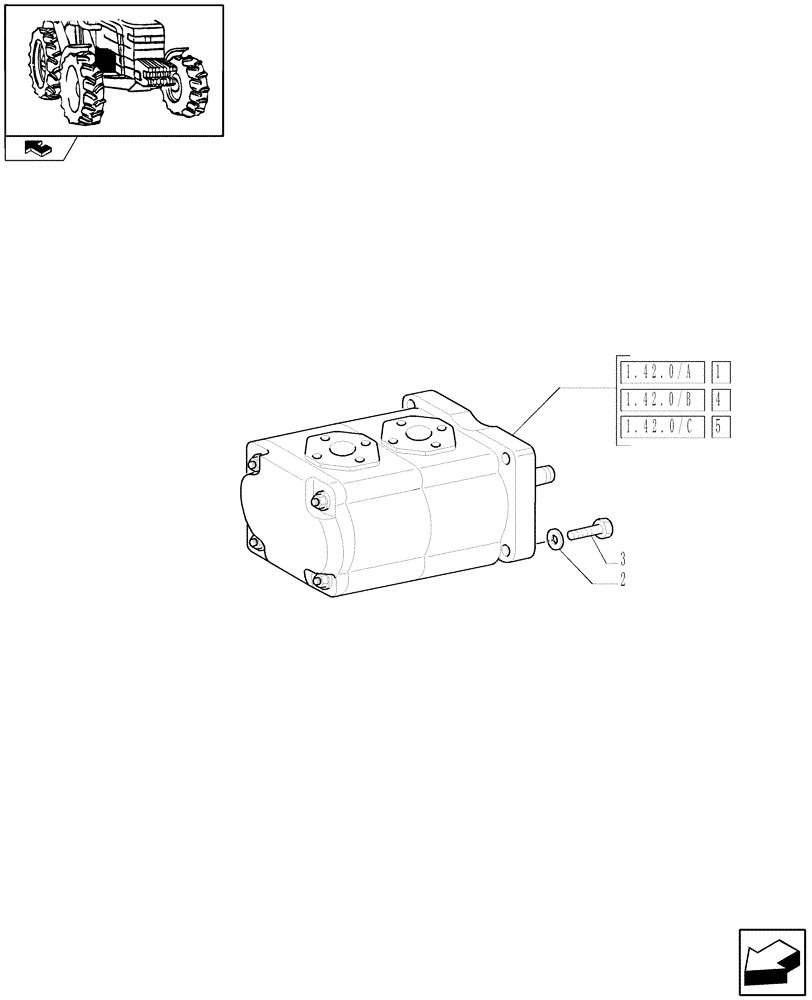

Схема запчастей Case IH FARMALL 90 - (1.42.0) - HYDRAULIC PUMP (04) - FRONT AXLE & STEERING
1
4
1.42.0/a
home
1.42.0/c
1.42.0/b
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47129337

HYDRAULIC PUMP,DOUBLE, 19.55 CC + 11.26 CC

ASSY

1шт.

45l/Min, Base Equipment

1шт.

1

47129337R

REMAN-HYD PUMP

FARMALL 90, FARMALL 95 Both TIER 3 (1/07-)

1шт.

1

47129337C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

3

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

87386049

HYDRAULIC PUMP,DOUBLE, 25.45 CC + 14.62 CC

ASSY, Serial Range: -C5996

1шт.

61l/Min, VAR.330690

1шт.

4

87472285R

REMAN-HYD PUMP

61l/Min, VAR.330690, Serial Range: -C5996

1шт.

4

87472285C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

87472285

HYDRAULIC PUMP,DOUBLE, 25.45 CC + 14.62 CC

ASSY, Start Serial: D5996

1шт.

5

87472285R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

5

87472285C

CORE-HYDRAULIC PUMP

Return Number

1шт.
