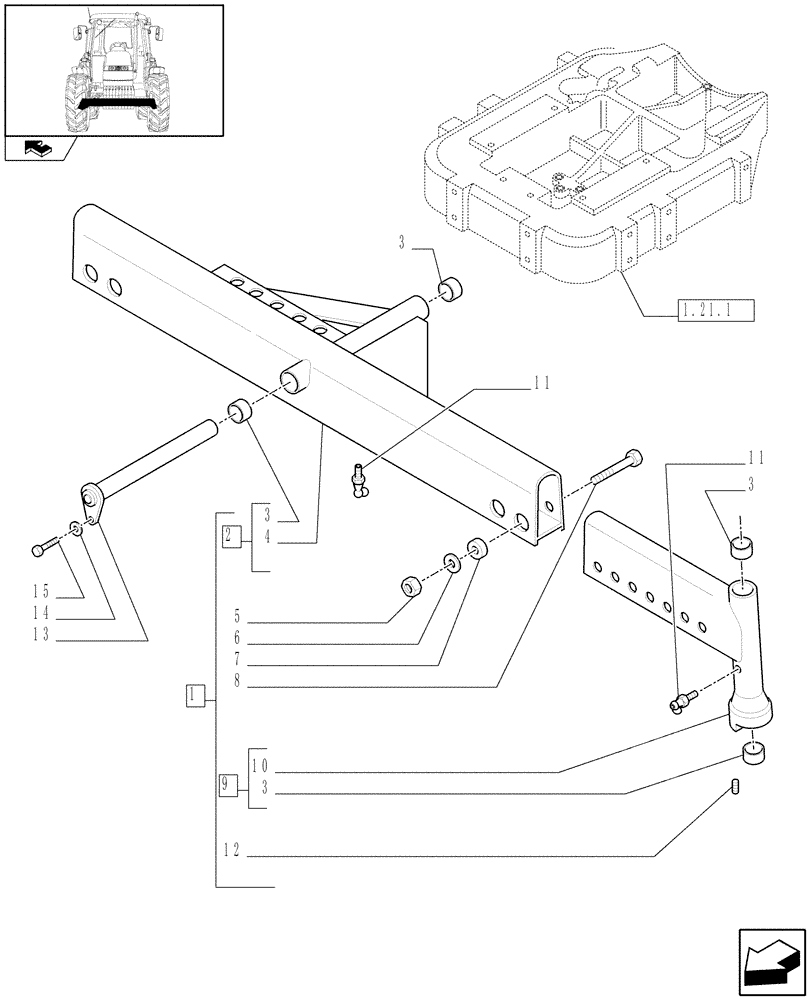

Запчасти Case IH FARMALL 90 (1.41.0[01]) - 2WD FRONT AXLE - BODY (04) - FRONT AXLE & STEERING

1

5086618

FRONT AXLE

1шт.

2

5086777

FRONT AXLE

1шт.

3

5115850

BUSHING

6шт.

4

5086616

FRONT AXLE

1шт.

5

12164121

NUT,M16 x 1.5, Cl 10

4шт.

6

10517274

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

4шт.

7

5104245

SPACER,16.2mm ID x 40mm OD x 15mm

4шт.

8

15981821

SCREW,Hex, M16 x 1.5 x 120mm, Cl 8.8

4шт.

9

5085387

AXLE

2шт.

10

5085273

AXLE

2шт.

11

13408411

LUBE NIPPLE,90 Degree , M10 x1

3шт.

12

10839510

DOWEL,M6 x 9

2шт.

13

5110400

PIVOT PIN,400mm L

1шт.

14

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

1шт.

15

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.
