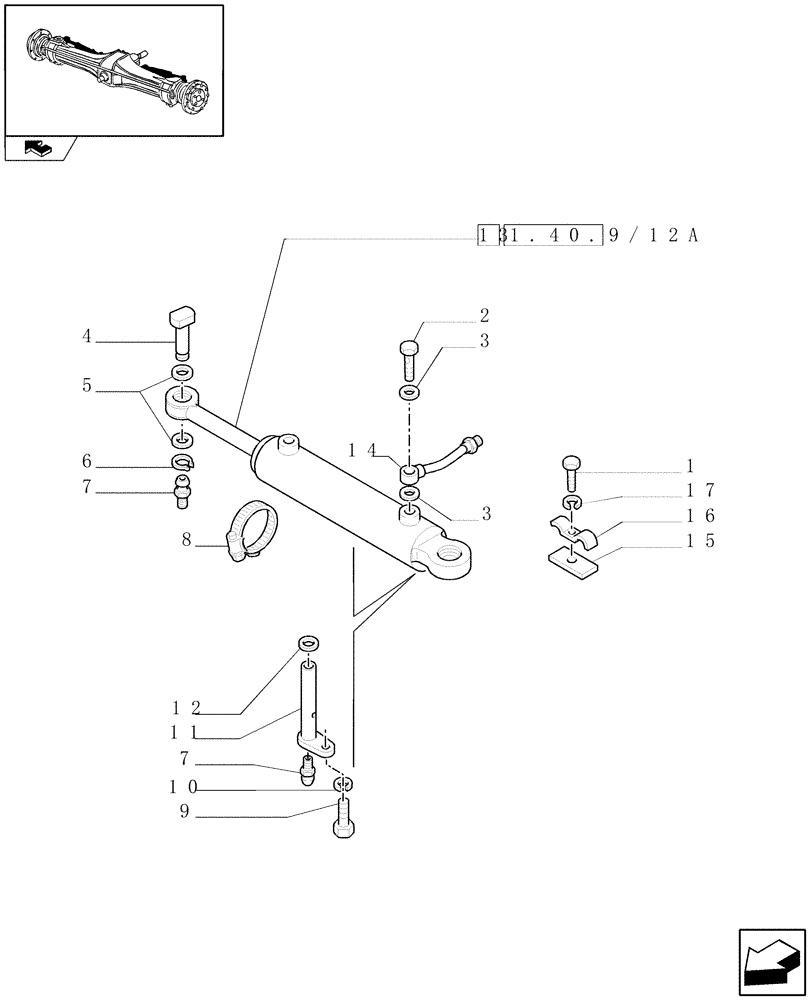

Запчасти Case IH FARMALL 90 (1.40.9/12) - STANDARD FRONT AXLE W/LIMITED SLIP DIFF,40KM/H - HYDR STEERING CYL (VAR.335541-743559-743552) (04) - FRONT AXLE & STEERING

1

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

2

4864083

BANJO BOLT,M14 x 1.5 x 30mm

3шт.

3

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

14.86x22.23x2

4шт.

4

5111572

PIN,24.99mm OD x 76mm L

1шт.

5

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

2шт.

6

370002

CIRCLIP,M25, External

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

1шт.

8

13000990

COLLAR,60mm - 80mm, Worm Gear

D=60-80

1шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

11

5142236

PIN

1шт.

12

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

1шт.

13

5134221

STEERING CYLINDER,Double Acting, 25mm Rod, 230mm Stroke

384MM

1шт.

14

5145031

HYD TUBE

1шт.

15

5138294

SUPPORT

1шт.

16

4999554

CLAMP,2 Hoses

1шт.

17

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.
