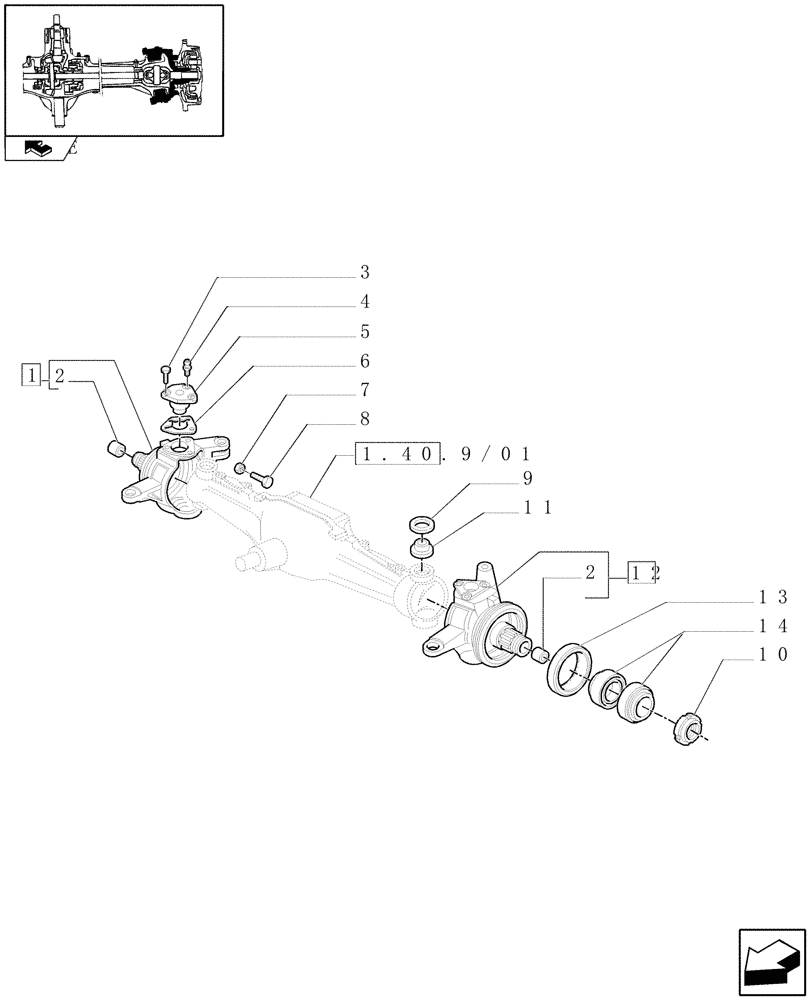

Запчасти Case IH FARMALL 90 (1.40.9/02) - STANDARD FRONT AXLE W/LIMITED SLIP DIFF,40KM/H - STEER KNUCKLE (VAR.335541-743559-743552) (04) - FRONT AXLE & STEERING

1

5142231

KNUCKLE,RH

RH

1шт.

2

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42x46x28

1шт.

3

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

5

5137239

BALL STUD

BALL PIN

4шт.

6

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

6

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

6

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

0.20MM

1шт.

6

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

0.30MM

1шт.

6

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

1шт.

7

5148495

SPACER,10.2mm ID x 22mm OD x 13.5mm L

2шт.

8

5126628

BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9

2шт.

9

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

70x56x7.5

4шт.

10

5142020

NUT,Hex, M75 x 2

2шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

4шт.

12

5142229

KNUCKLE,LH

LH

1шт.

13

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

165X190X15.5/16.5

2шт.

14

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

4шт.
