(1.40.4/08[01]) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (30KM/H)-POWER STEER. CYL. (VAR.335539-743906)

Запчасти Case IH FARMALL 90 (1.40.4/08[01]) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (30KM/H)-POWER STEER. CYL. (VAR.335539-743906) (04) - FRONT AXLE & STEERING

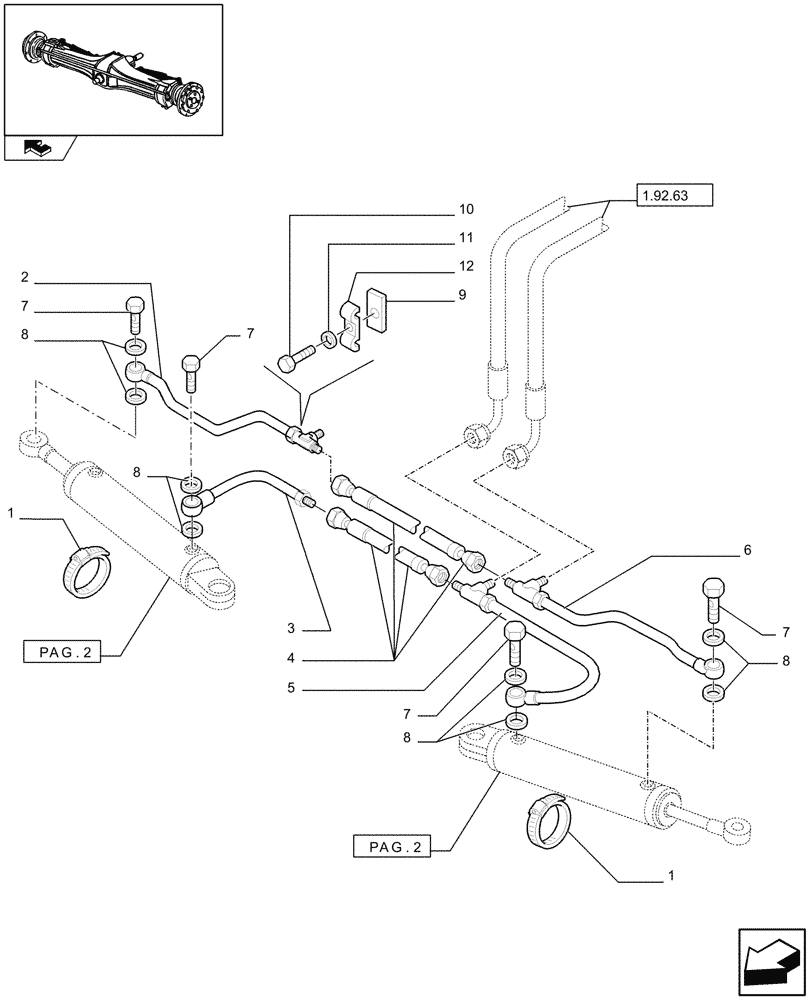

Схема запчастей Case IH FARMALL 90 - (1.40.4/08[01]) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (30KM/H)-POWER STEER. CYL. (VAR.335539-743906) (04) - FRONT AXLE & STEERING
1.92.63
9
2
3
8
a
7
a
6
5
p
p
8
g
11
2
8
10
8
.
.
1
12
7
2
g
4
7
7
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

D=50-70

2шт.

2

5139046

HYD TUBE

1шт.

3

5163738

HYD TUBE

1шт.

4

5126537

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R2

2шт.

5

87335652

HYD TUBE

1шт.

6

87335657

HYD TUBE

1шт.

7

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14 x 1.5

4шт.

8

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

8шт.

9

5138294

SUPPORT

2шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

12

4999554

CLAMP,2 Hoses

2шт.
