(1.40.4/07) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (30KM/H) - DIFFERENTIAL (VAR.335539-743906)

Запчасти Case IH FARMALL 90 (1.40.4/07) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (30KM/H) - DIFFERENTIAL (VAR.335539-743906) (04) - FRONT AXLE & STEERING

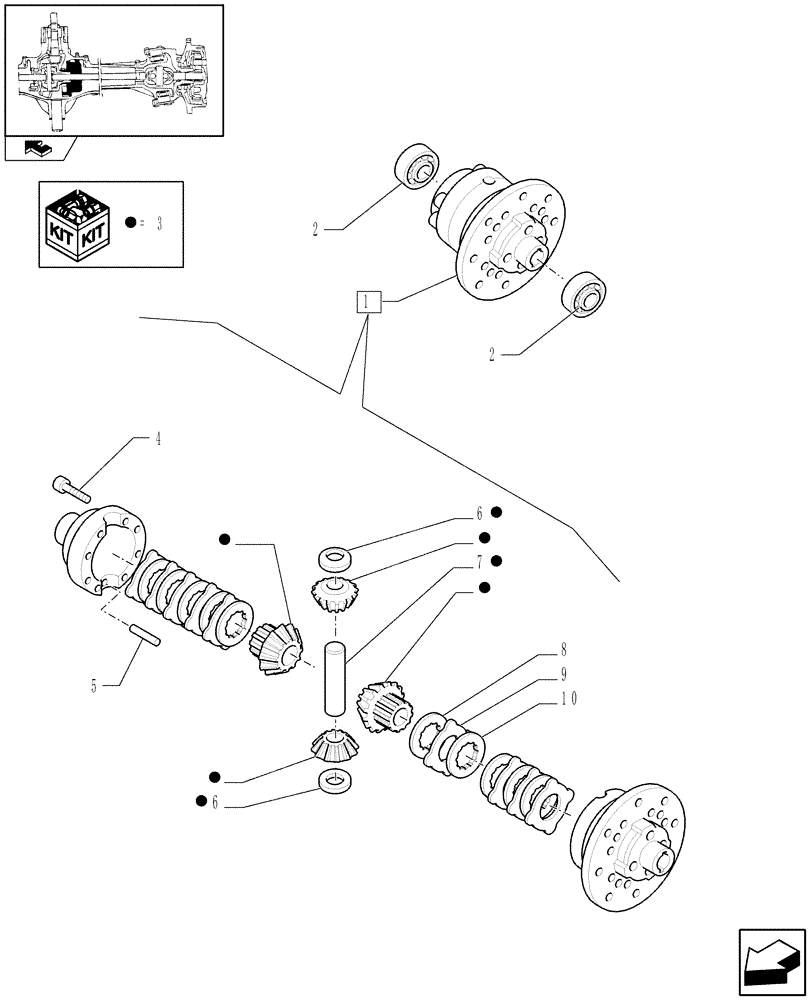

Схема запчастей Case IH FARMALL 90 - (1.40.4/07) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (30KM/H) - DIFFERENTIAL (VAR.335539-743906) (04) - FRONT AXLE & STEERING
3
3
1
2
3
5
10
8
3
3
7
6
4
9
3
3
6
3
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5162583

DIFFERENTIAL GEAR

1шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

3

1930983

KIT

1шт.

4

14421034

HEX SOC SCREW,M10 x 70mm, Cl 10.9

12шт.

5

9966356

ROLL PIN,7mm OD x 40mm L

1шт.

6

9966352

THRUST WASHER

2шт.

7

9966354

SHAFT

1шт.

8

9966308

PLATE

2шт.

9

9966309

DRIVEN PLATE

10шт.

10

9966310

PLATE

8шт.

Выбрано товаров: 10
