(1.40.4/04) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (30KM/H) - TIE ROD (VAR.335539-743906)

Запчасти Case IH FARMALL 90 (1.40.4/04) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (30KM/H) - TIE ROD (VAR.335539-743906) (04) - FRONT AXLE & STEERING

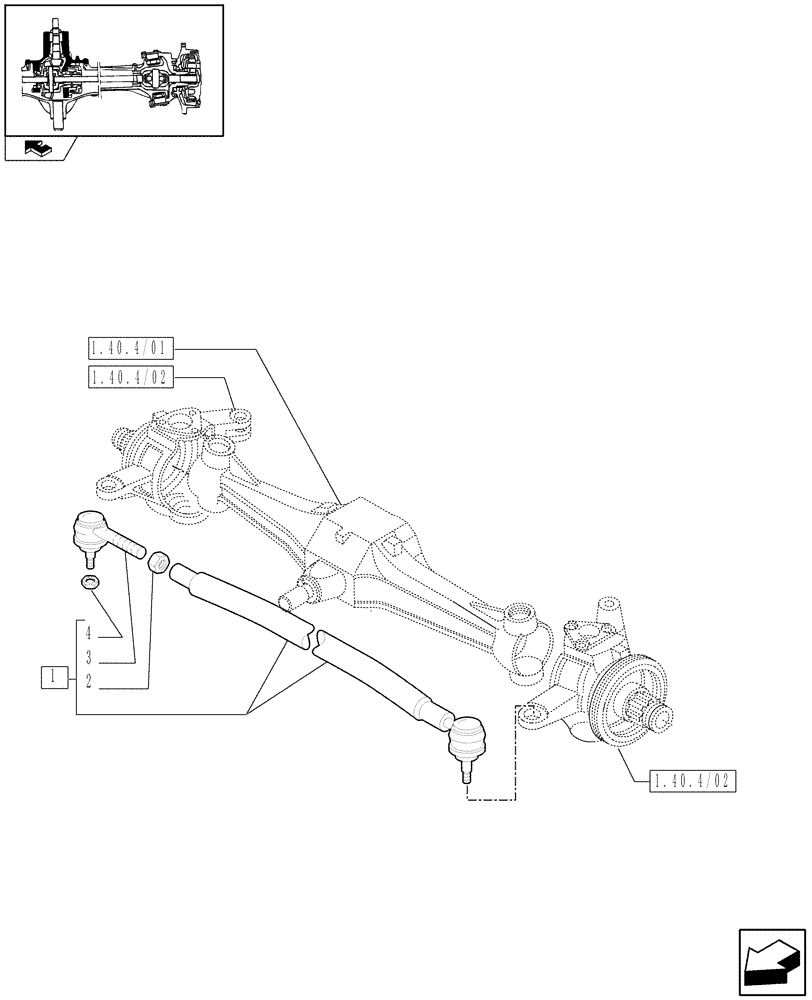

Схема запчастей Case IH FARMALL 90 - (1.40.4/04) - CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP (30KM/H) - TIE ROD (VAR.335539-743906) (04) - FRONT AXLE & STEERING
1.40.4/02
1.40.4/02
1.40.4/01
4
home
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5168933

TRACK ROD ASSY,30mm ID x 1475mm L

1шт.

2

587302

LOCK NUT,Hex, M20 x 1

M20x1

1шт.

3

5109553

BALL JOINT

M16xM20 Threads

1шт.

4

12575921

NUT,M16 x 1.5, Cl 05

2шт.
