Запчасти Case IH FARMALL 90 (1.40.0/06[01]) - 4WD FRONT AXLE - BEVEL GEAR/PINION SET (04) - FRONT AXLE & STEERING

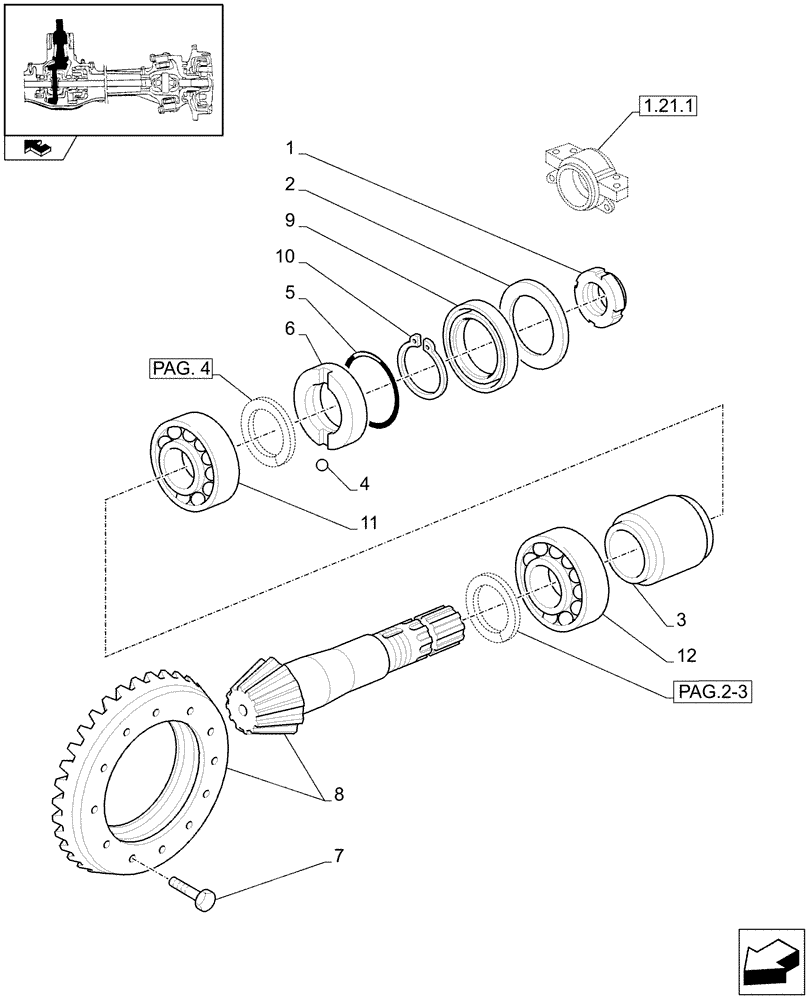

Схема запчастей Case IH FARMALL 90 - (1.40.0/06[01]) - 4WD FRONT AXLE - BEVEL GEAR/PINION SET (04) - FRONT AXLE & STEERING
1.21.1
3
6
1
5
home
1
4
p
9
12
p
10
2
1
7
ag.2-3
8
ag. 4

Артикул

Название

Примечание

Количество

1

5143242

RING NUT,M35 x 1.5

1шт.

2

4997451

SEAL PROTECTION,45.4mm ID x 75mm OD x 1mm Thk

1шт.

3

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

1шт.

4

20419320

BALL,6.35mm OD

1шт.

5

579359

O-RING,1.239" ID x 1.379" OD x 0.07"

1шт.

6

5142026

RING,35.1mm ID x 45mm OD x 22mm L

1шт.

7

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

8

5142023

GEAR SET

9/39

1шт.

9

5135294

SEAL,45mm ID x 75mm OD x 12mm Thk

1шт.

10

11067776

SNAP RING,M29, Ext

1шт.

11

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

1шт.

12

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

Выбрано товаров: 12
