(1.40.0/04) - 4WD FRONT AXLE - TIE-ROD

Запчасти Case IH FARMALL 90 (1.40.0/04) - 4WD FRONT AXLE - TIE-ROD (04) - FRONT AXLE & STEERING

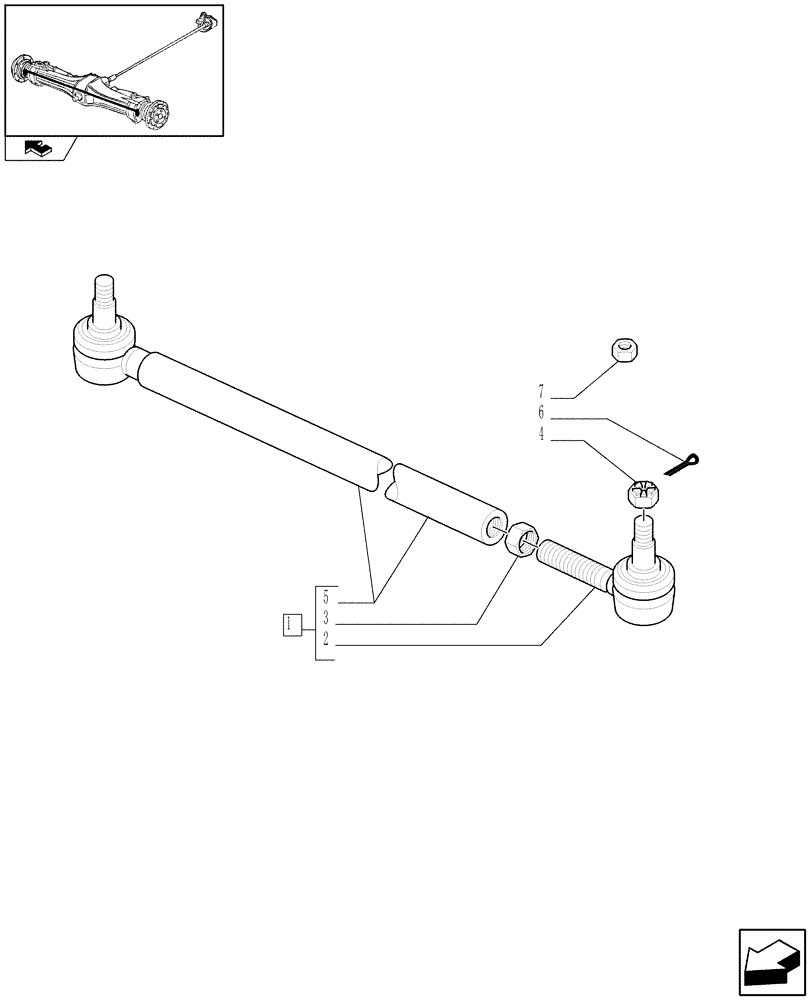

Схема запчастей Case IH FARMALL 90 - (1.40.0/04) - 4WD FRONT AXLE - TIE-ROD (04) - FRONT AXLE & STEERING
home
1
5
6
7
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5142233

TRACK ROD ASSY

1шт.

2

87542553

BALL JOINT

1шт.

3

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

4

10724614

SLOTTED NUT,Thin Slotted, M18, 1.5mm Pitch, 15.00mm High, R80, DAC

2шт.

5

5142234

TRACK ROD ASSY

1шт.

6

10733804

COTTER PIN,4.00mm Dia x 16.00mm

2шт.

7

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.
