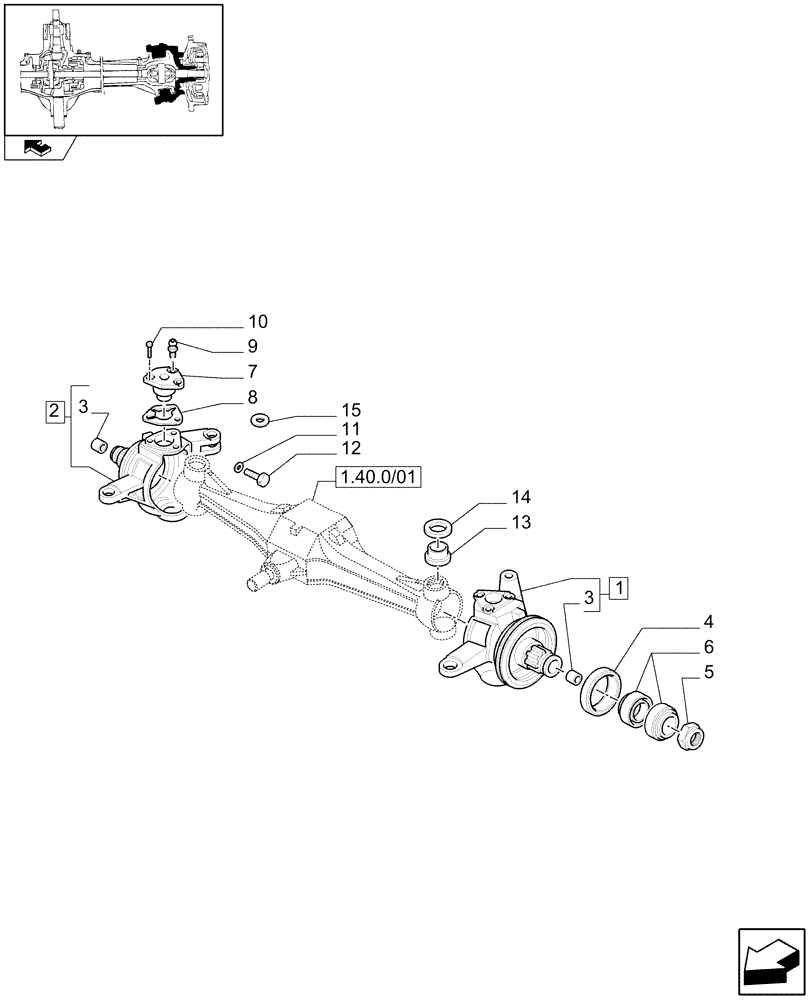

Запчасти Case IH FARMALL 90 (1.40.0/02) - 4WD FRONT AXLE - STEERING KNUCKLE (04) - FRONT AXLE & STEERING

1

5142229

KNUCKLE,LH

1шт.

2

5142231

KNUCKLE,RH

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42x46x28

2шт.

4

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

165X190X15.5/16.5

2шт.

5

5142020

NUT,Hex, M75 x 2

2шт.

6

5136951

TAPERED BEARING,95mm ID x 135mm OD x 20mm W

95 x 135 x 20

4шт.

7

5137239

BALL STUD

BALL PIN

4шт.

8

5087426

SHIM KIT

4шт.

9

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

10

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

11

5148495

SPACER,10.2mm ID x 22mm OD x 13.5mm L

2шт.

12

5126628

BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9

, Serial Range: -C6845

2шт.

12

84357510

SCREW

, Start Serial: D6845

2шт.

13

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

4шт.

14

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

4шт.

15

5166180

SPACER,10.2mm ID x 20mm OD x 9mm L

, Start Serial: D6845

2шт.
