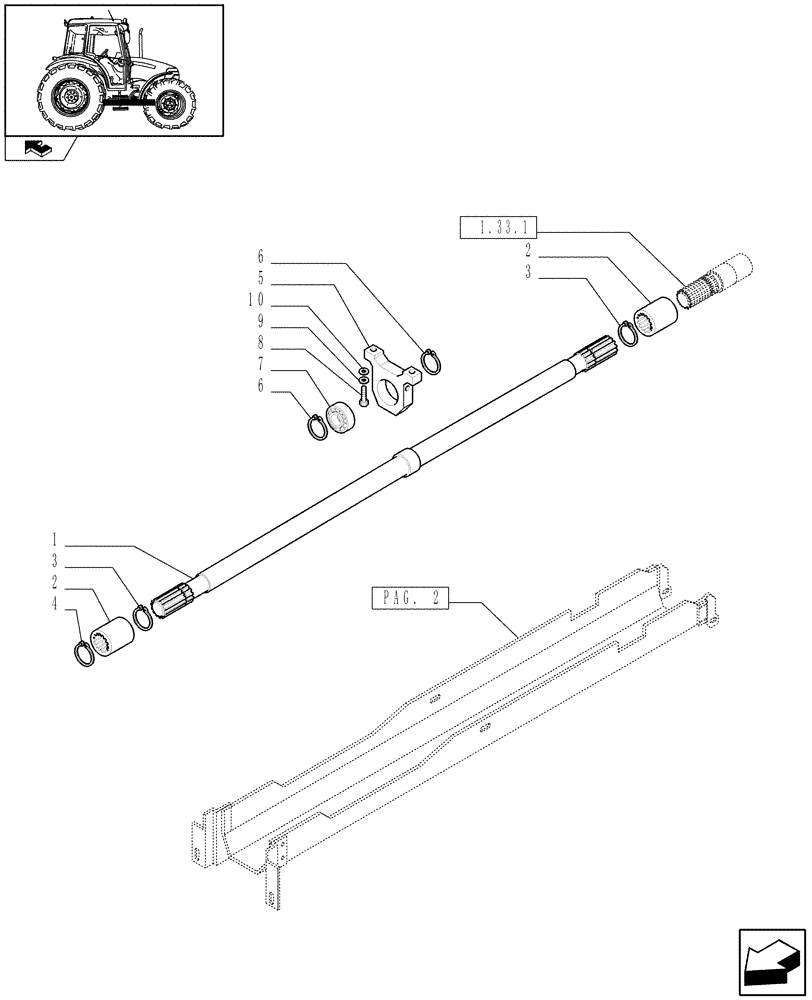

Запчасти Case IH FARMALL 90 (1.38.5[01]) - 4WD PROPELLER SHAFT (04) - FRONT AXLE & STEERING

1

5092840

SHAFT

1шт.

1

84143881

JACKSHAFT

1шт.

Rear Electrohydraulic Diff. Lock and Electrohydraulic 4WD Engagement; VAR.330384 (743909)

1шт.

2

5199243

SPLINED COUPLING

2шт.

3

11067776

SNAP RING,M29, Ext

2шт.

4

4997301

SHIM,29mm ID x 40mm OD x 2.2mm Thk

1шт.

4

4997302

SHIM,29mm ID x 40mm OD x 2.5mm Thk

1шт.

4

4997303

SHIM,29mm ID x 40mm OD x 2.8mm Thk

1шт.

4

4997304

SHIM,29.6mm ID x 40mm OD x 3mm Thk

1шт.

4

4997305

SHIM,29.6mm ID x 40mm OD x 3.3mm Thk

1шт.

4

4997306

SHIM,29.6mm ID x 40mm OD x 3.7mm Thk

1шт.

4

4997307

SHIM,29.6mm ID x 40mm OD x 4mm Thk

1шт.

4

4997308

SHIM,29.6mm ID x 40mm OD x 4.3mm Thk

1шт.

4

5085566

SHIM KIT

1шт.

4

5158051

SHIM,29.6mm ID x 40mm OD x 1.5mm Thk

1шт.

4

5158052

SHIM,29.6mm ID x 40mm OD x 1.9mm Thk

1шт.

5

5156553

SUPPORT

1шт.

6

11061576

SNAP RING,M72, Int

2шт.

7

28996680

BALL BEARING,30mm ID x 72mm OD x 19mm W

1шт.

8

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

9

10571979

LOCK WASHER,M12

2шт.

10

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

11

87626246

GUARD

1шт.

12

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

13

10516674

LOCK WASHER,M8

6шт.

14

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.
