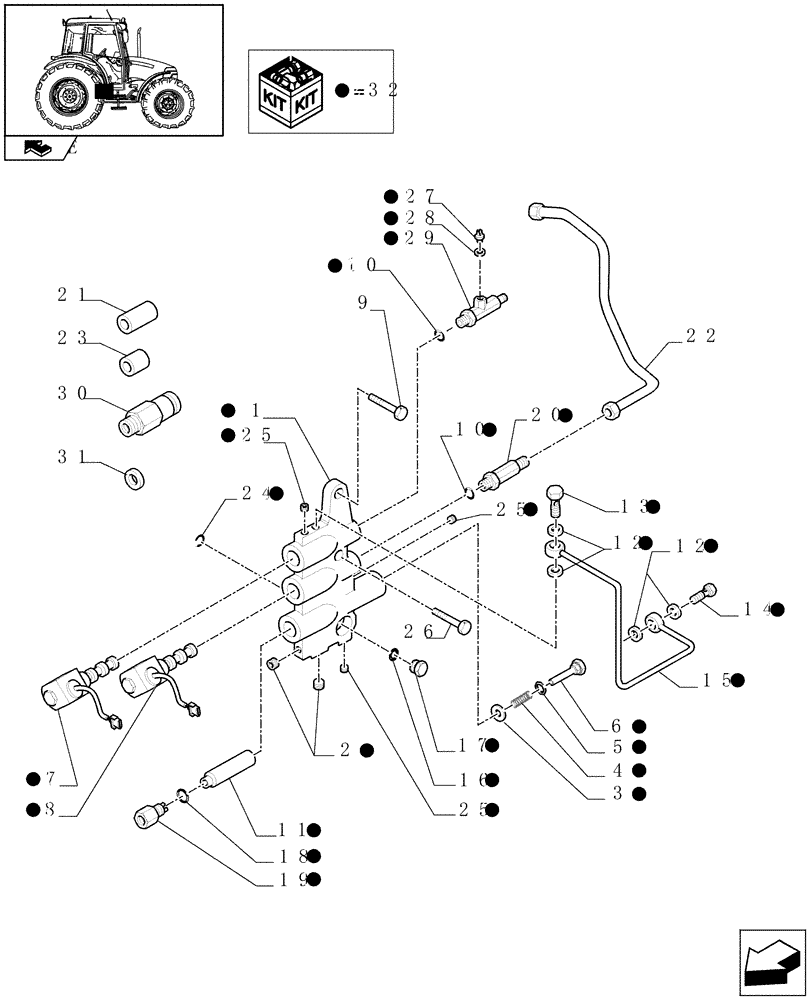

Запчасти Case IH FARMALL 90 (1.33.2/03[02]) - ELECTROHYDRAULIC DIFFERENTIAL LOCK CONTROL - PIPES & SOLENOID VALVES - C6547 (VAR.330384-743909) (04) - FRONT AXLE & STEERING

1

5174901

VALVE

Incl. 2, 11, 25

1шт.

2

10269501

PLUG,M14 x 1.5

14 x 1.5

2шт.

3

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

5 x 11

1шт.

4

5157119

SPRING,11.5mm x 127mm

1шт.

5

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

1шт.

6

5196410

PLUG

1шт.

7

5164628

SOLENOID

Diff. Lock

1шт.

8

5164627

SOLENOID

4WD

1шт.

9

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

11

5169220

HYDRAULIC VALVE

Maximum Pressure

1шт.

12

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

4шт.

13

11903814

BANJO BOLT,M10 x 1.25 x 19mm

1шт.

14

5169835

BANJO BOLT

1шт.

15

5169701

TUBE

1шт.

16

14438185

O-RING,24mm ID x 3mm

1шт.

17

5174927

PLUG

1шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

19

84139506

HYD CONNECTOR

1шт.

20

5162919

EXTENSION

1шт.

21

84144851

SPACER

1шт.

22

84139253

PIPE

4WD Delivery, 3/4"-16 / 12

1шт.

23

84144850

SPACER

1шт.

24

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

25

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

3шт.

26

15541624

SCREW,Hex, M12 x 1.25 x 100mm, Cl 8.8

1шт.

27

87384756

SWITCH ASSY

1шт.

28

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER

1шт.

29

5169207

HYD CONNECTOR

1шт.

30

84144852

HYD CONNECTOR

1шт.

31

44019496

SEAL,21.2mm ID x 26mm OD x 2mm Thk

1шт.

32

84147175

SOLENOID VALVE

1шт.
