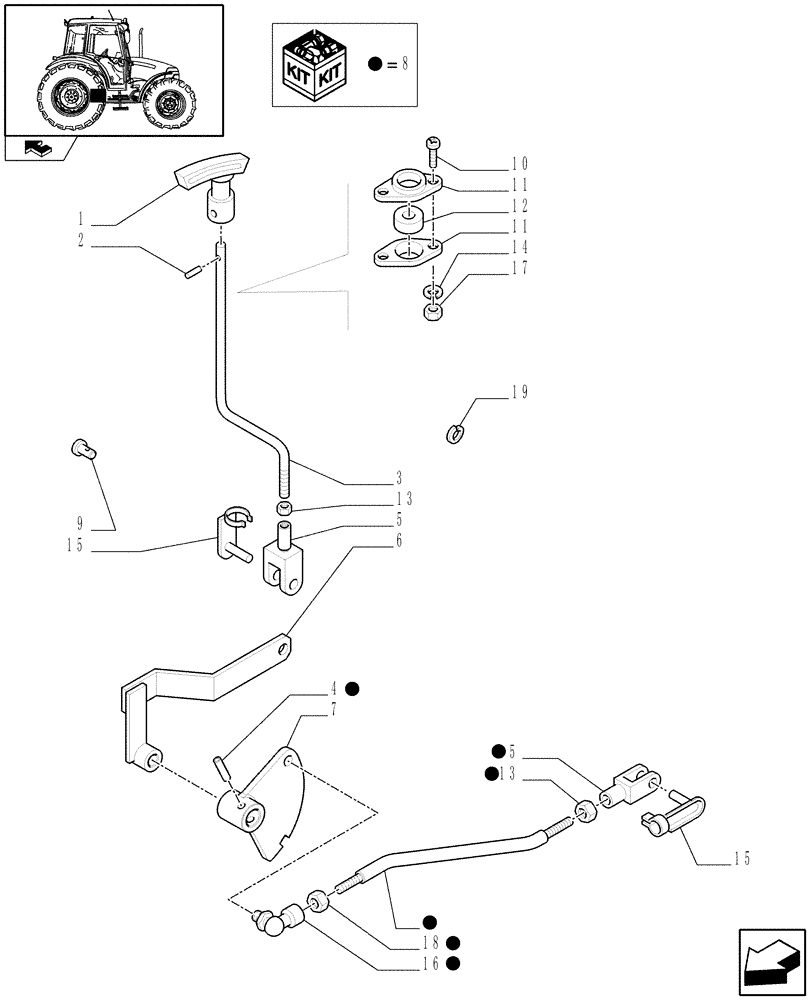

Запчасти Case IH FARMALL 90 (1.33.2/02) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - IDLER CONTROLS (VAR.335113-335115-336115-743904) (04) - FRONT AXLE & STEERING

1

5112229

HANDLE GRIP

1шт.

2

14163970

COTTER PIN,M4 x 20, Slotted

1шт.

3

5092885

ARM

Creeper Control

1шт.

4

14607079

PIN,8mm OD x 32mm L, Slotted

1шт.

5

5148659

CLEVIS

2шт.

6

5092888

LEVER

1шт.

7

84195818

SECTOR

1шт.

8

84209206

ROD

1шт.

9

5089126

PIN,12mm OD x 89mm L

1шт.

10

13276114

SCREW,Pozidriv Pan Hd, M6 x 14mm

2шт.

11

5156494

FLANGE

2шт.

12

5109058

BUSHING,10.5mm ID x 25mm OD

1шт.

13

10791011

THIN NUT,Thin, M10 x 1.25, Cl 04

2шт.

14

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

15

5111594

PIN,10mm OD x 65mm L

2шт.

16

87636958

BALL JOINT

1шт.

17

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

18

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

19

370001

SNAP RING,M22, External

1шт.
