Запчасти Case IH FARMALL 90 (1.33.1/02[02]) - ELECTROHYDRAULIC DIFFERENTIAL LOCK CONTROL - 4WD TRANSMISSION SHAFT (VAR.330384-743909) (04) - FRONT AXLE & STEERING

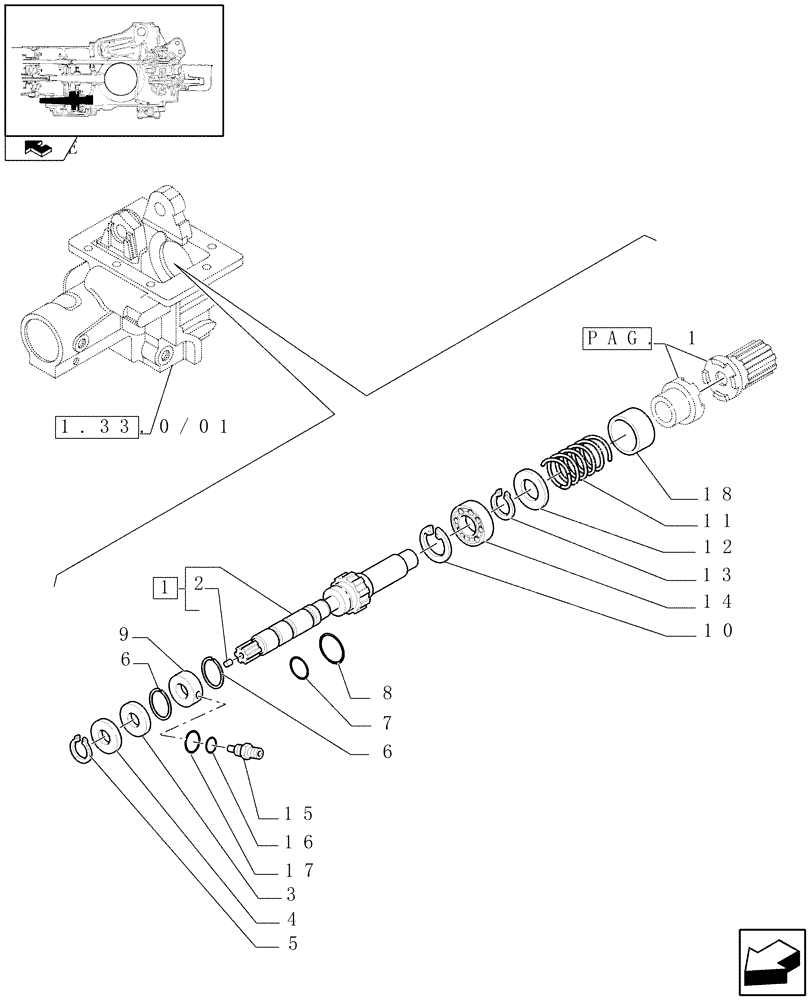

Схема запчастей Case IH FARMALL 90 - (1.33.1/02[02]) - ELECTROHYDRAULIC DIFFERENTIAL LOCK CONTROL - 4WD TRANSMISSION SHAFT (VAR.330384-743909) (04) - FRONT AXLE & STEERING
6
7
8
pag. 1
home
4
17
5
14
3
11
13
15
18
12
16
1.33.0/01
10
6
2
1
9

Артикул

Название

Примечание

Количество

1

47130811

SHAFT

1шт.

2

13789720

SET SCREW,Hex Skt, M8 x 12mm, Flat Pt

1шт.

3

5150370

SEAL,35mm ID x 80mm OD x 10mm Thk

35 x 80 x 10

1шт.

Less waterproof transmission

1шт.

4

5150371

DISC,35.2mm ID x 80mm OD x 6mm Thk

1шт.

Less waterproof transmission

1шт.

5

11067776

SNAP RING,M29, Ext

1шт.

6

5195944

SEALING RING,31.8mm ID x 35mm OD x 2.5mm Thk

2шт.

7

5160580

GASKET,27.55mm ID x 35.12mm OD x 3.2mm Thk

D=35

1шт.

8

5152665

SEAL,42.55mm ID x 50.12mm OD x 3.2mm Thk

42.6 x 50 x 3.2

1шт.

9

5197419

MANIFOLD

1шт.

10

11061976

SNAP RING,M80, Int

D=80

1шт.

11

87704329

SPRING,77mm OD x 86mm Free Length

1шт.

12

5176902

RING

1шт.

13

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

14

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35 x 80 x 21

1шт.

15

5181968

HYD CONNECTOR,3/4" - 16 JIC x M18 x 1.5 ORB

1шт.

16

14453080

O-RING,0.426" ID x 0.07"

1шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

18

84151182

SPACER

1шт.

Выбрано товаров: 20
