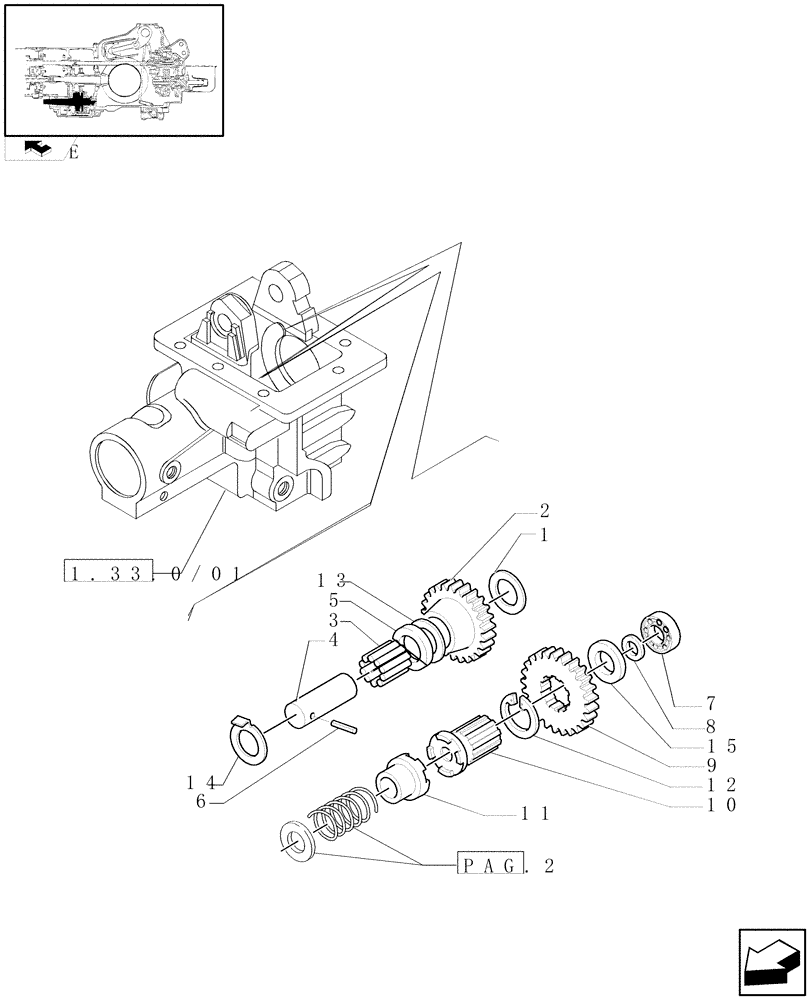

Запчасти Case IH FARMALL 90 (1.33.1/02[01]) - ELECTROHYDRAULIC DIFFERENTIAL LOCK CONTROL - 4WD TRANSMISSION GEARINGS (VAR.330384-743909) (04) - FRONT AXLE & STEERING

1

47133292

THRUST WASHER

1шт.

2

84242550

GEAR

1шт.

3

5115937

NEEDLE BEARING,26.8mm ID x 40.8mm OD x 41mm W

1шт.

4

47133291

PIN,26.8mm OD x 106.5mm L

1шт.

5

87315062

SPACER

1шт.

6

13942970

ROLL PIN,M6 x 45, Coiled

1шт.

7

23111990

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

30 x 72 x 19

1шт.

8

5160571

THRUST WASHER,30.25mm ID x 48mm OD x 4mm Thk

1шт.

9

87388610

GEAR

1шт.

10

47130409

SPLINED COUPLING

1шт.

11

5176903

SLEEVE,21T

1шт.

12

11069776

SNAP RING,M58, Ext

1шт.

13

87315030

THRUST WASHER,27mm ID x 51.5mm OD x 1.5mm Thk

1шт.

14

87314981

THRUST WASHER

1шт.

15

84151183

SPACER

1шт.
