(FARMALL 90) - TRACTOR - TIER 3 (1/07-5/13)
/
(00) - GENERAL
/

(0.05.4[01]) - MAINTENANCE PARTS - FILTERS

Запчасти Case IH FARMALL 90 (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL

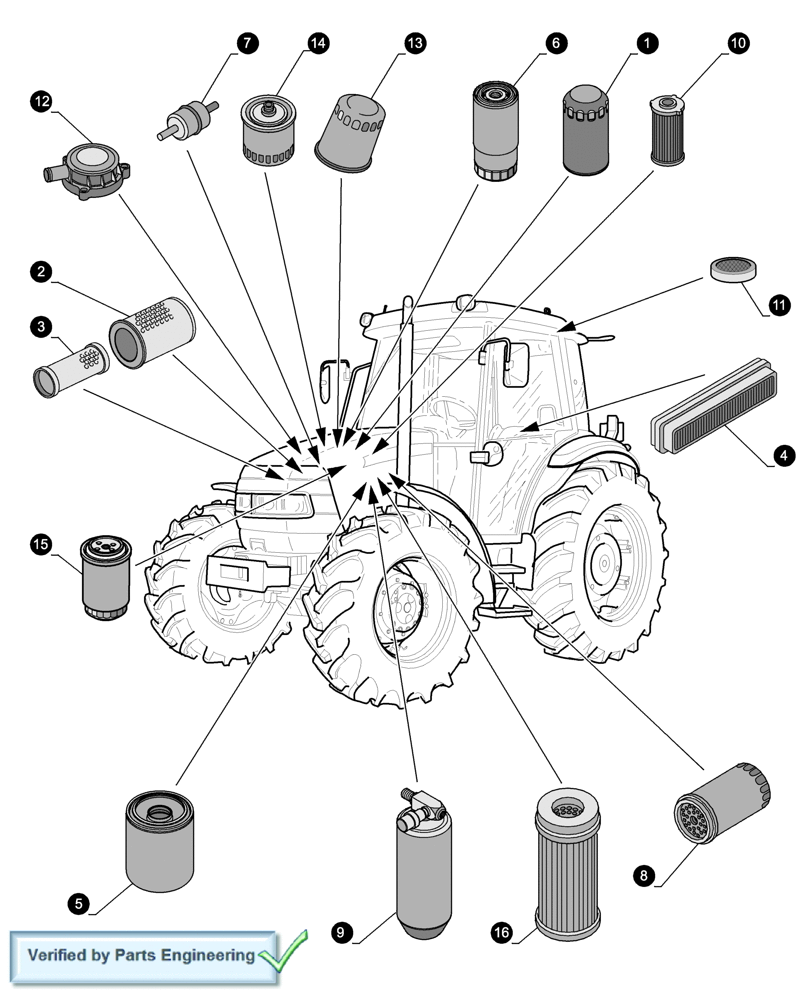

Схема запчастей Case IH FARMALL 90 - (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL
15
11
5
4
14
12
16
6
10
3
9
1
8
2
13
7

№

Артикул

Название

Примечание

Количество

1

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine Oil Filter, Spin-On

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

2

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Outer Cartridge

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

2

1930825

AIR FILTER,Secondary, 305mm L

Outer Cartridge, w/Dust Ejector

1шт.

Valid with JX95-TRACTOR - TIER 3 Models

1шт.

2

87704249

AIR FILTER

Primary Cartridge

1шт.

Valid with JX95-TRACTOR - TIER 3 Models

1шт.

2

1930605

AIR FILTER

Outer Cartridge

1шт.

Valid with JX95-TRACTOR - TIER 3 Models

1шт.

3

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Inner Cartridge

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

3

86982523

FILTER,ELEMENT

Secondary Cartridge

1шт.

Valid with JX95-TRACTOR - TIER 3 Models

1шт.

4

87603874

CAB FILTER

Inner Thick Cartridge, Recirculation

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

4

5097838

CAB FILTER,Carbon

Inner Thick Cartridge, Recirculation

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

Valid for Var. 330645

1шт.

5

84257511

HYDRAULIC OIL FILTER,138.00mm OD

Transmission/Pump

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

6

84565884

FUEL FILTER,75.8mm OD x 172mm L, M16 x 1.5 - 6H

Primary

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

7

87329736

FUEL FILTER

Primary, Strainer In Line

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

8

47425202

HYDRAULIC OIL FILTER,109.00mm OD

Hydraulic Lifter Pipes

1шт.

Valid with JX95-TRACTOR - TIER 3 Models

1шт.

9

5165615

RECEIVER-DRYER

Primary Cartridge

1шт.

Valid with JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

10

5194879

ELEMENT

Transmission/Pump

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

11

87574476

FILTER

Air Louver

1шт.

Valid with JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

12

500315794

BREATHER

Regulator Valve

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR - TIER 3, JX95-TRACTOR - TIER 3 Models

1шт.

13

84221215

ENGINE OIL FILTER

Spin-On

1шт.

Valid with JX95-TRACTOR - TIER 3 Models

1шт.

14

84217953

FUEL FILTER

Engine Fuel Filter, w/Fuel Sedimenting Device

1шт.

Valid with JX95-TRACTOR - TIER 3 Models

1шт.

15

84214564

FUEL FILTER

Primary, Spin-On

1шт.

Valid with JX95-TRACTOR - TIER 3 Models

1шт.

16

1909143

FILTER

Power Steering

1шт.

Valid with JX95-TRACTOR - TIER 3 Models

1шт.

Выбрано товаров: 43
