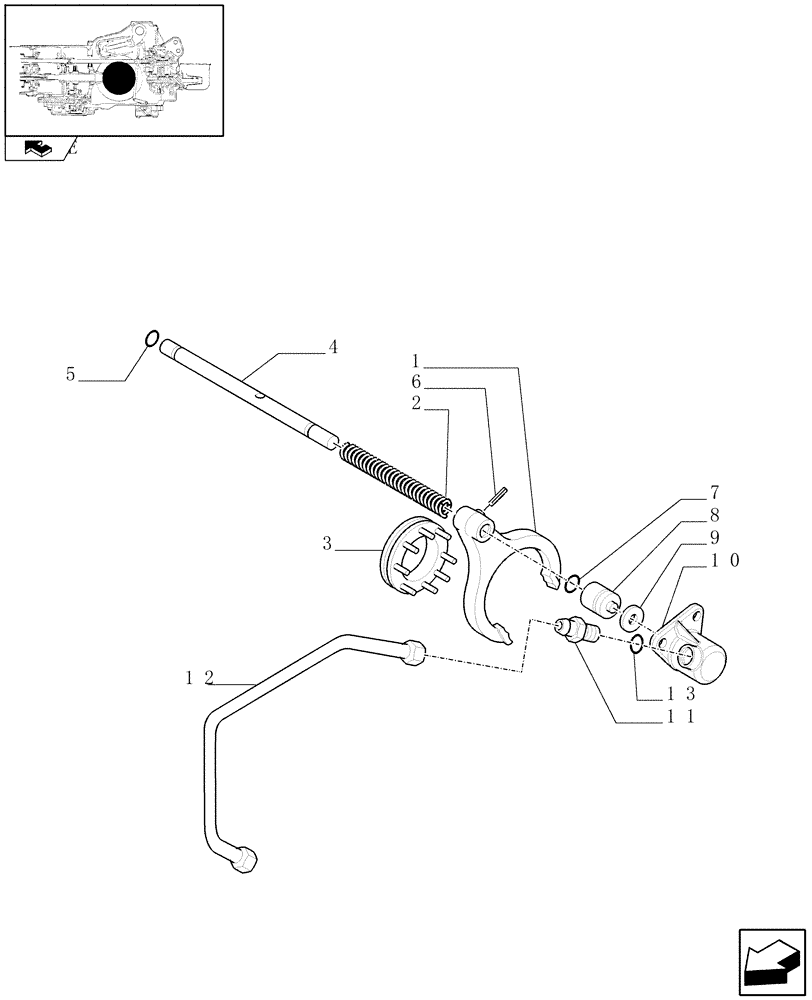

Запчасти Case IH FARMALL 90 (1.32.6/01) - ELECTROHYDRAULIC DIFFERENTIAL LOCK CONTROL - ROD AND FORK (VAR.330384-743909) (03) - TRANSMISSION

1

5113659

SHIFTER FORK

1шт.

2

5094199

SPRING

1шт.

3

5117245

DRIVE BUSHING

1шт.

4

84129925

SHAFT

1шт.

5

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

6

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

1шт.

7

5160827

SEAL,22.55mm ID x 30.1mm OD x 3.2mm Thk

1шт.

8

84129783

PISTON

1шт.

9

84129792

SPACER,10mm ID x 22mm OD x 0.5mm Thk

3шт.

10

84129572

LINER

1шт.

11

5158800

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

1шт.

12

84139250

PIPE

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.
