Запчасти Case IH FARMALL 90 (1.32.4[01]) - DIFFERENTIAL GEARINGS - DIFFERENTIAL BOX AND GEARS (03) - TRANSMISSION

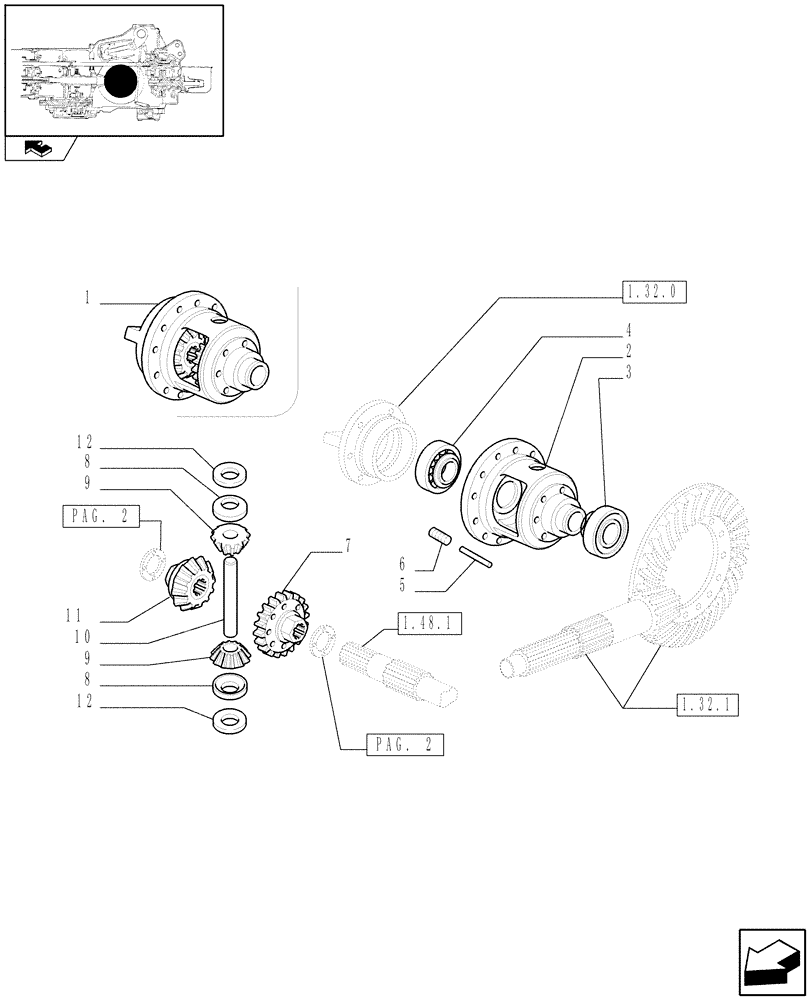

Схема запчастей Case IH FARMALL 90 - (1.32.4[01]) - DIFFERENTIAL GEARINGS - DIFFERENTIAL BOX AND GEARS (03) - TRANSMISSION
8
5
6
2
pag. 2
pag. 2
home
1.48.1
1.32.0
1.32.1
9
10
12
1
7
8
4
12
11
9
3

Артикул

Название

Примечание

Количество

1

87523515

DIFFERENTIAL GEAR

90 Model, Serial Range: -C6829

1шт.

1

5117236

DIFFERENTIAL GEAR

90 Model, Start Serial: D6829

1шт.

1

5090543

DIFFERENTIAL

95 Model, Serial Range: -C6826

1шт.

1

84345898

DIFFERENTIAL

95 Model, Start Serial: D6826

1шт.

2

5173246

HOUSING

90 Model

1шт.

2

5090264

CASE

95 Model

1шт.

3

26799990

TAPERED BEARING,55mm ID x 100mm OD x 22.75mm W

1шт.

4

24903460

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

1шт.

5

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

6

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

7

4997230

PLANETARY GEAR,19T

1шт.

8

4991658

THRUST WASHER,25mm ID x 54.5mm OD x 1.5mm Thk

90 Model

2шт.

8

5089372

THRUST WASHER

95 Model

2шт.

9

4991695

IDLER PINION

90 Model

2шт.

9

5089371

GEAR

95 Model, Serial Range: -C6826

2шт.

9

84343773

GEAR

95 Model, Start Serial: D6826

2шт.

10

5094841

PIN

90 Model

1шт.

10

5089373

PIN

95 Model, Serial Range: -C6826

1шт.

10

84344710

PIN

95 Model, Start Serial: D6826

1шт.

10

84474220

PIN

95 Model

1шт.

11

5149551

PLANETARY GEAR,19T

1шт.

12

5085514

THRUST WASHER,51mm ID x 70mm OD x Smm Thk

95 Model

2шт.

Выбрано товаров: 22
