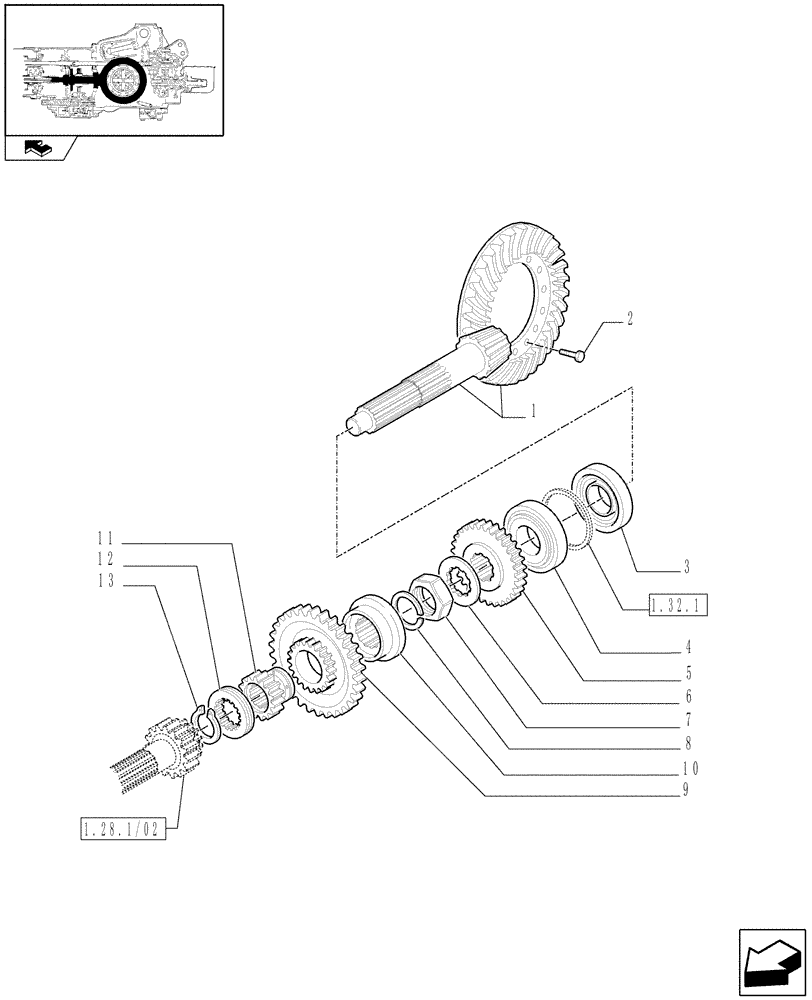

Запчасти Case IH FARMALL 90 (1.32.1/03[01]) - 12X12 TRANSMISSION WITH SYNCHRO SHUTTLE - BEVEL GEAR PAIR (STD, 743552-331251-331321-743905) (03) - TRANSMISSION

1

87534857

BEVEL GEAR

1шт.

2

14274634

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

8шт.

Valid for 95 Models Only

1шт.

2

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

Valid for 90 Models Only

1шт.

3

5138664

TAPERED BEARING,45mm ID x 100mm OD x 38.25mm W

45 x 100 x 38.2

1шт.

4

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

1шт.

5

5131674

DRIVEN GEAR

1шт.

6

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

7

5117744

NUT

1шт.

8

5127762

HALF-RING

2шт.

9

5160747

GEAR

1шт.

10

5160748

SPACER

1шт.

11

5160749

SPLINED COUPLING,10T Internal / 23T External

1шт.

12

5125010

SLEEVE,23T

1шт.

13

11068976

SNAP RING,M42, Ext

1шт.
