(1.32.1/01[02]) - 20X12 (40KM/H) TRANSMIS. W/FRONT BRAKE & LIMITED SLIP - DRIVE SHAFT AND GEARINGS (VAR.335115-336115-743904)

Запчасти Case IH FARMALL 90 (1.32.1/01[02]) - 20X12 (40KM/H) TRANSMIS. W/FRONT BRAKE & LIMITED SLIP - DRIVE SHAFT AND GEARINGS (VAR.335115-336115-743904) (03) - TRANSMISSION

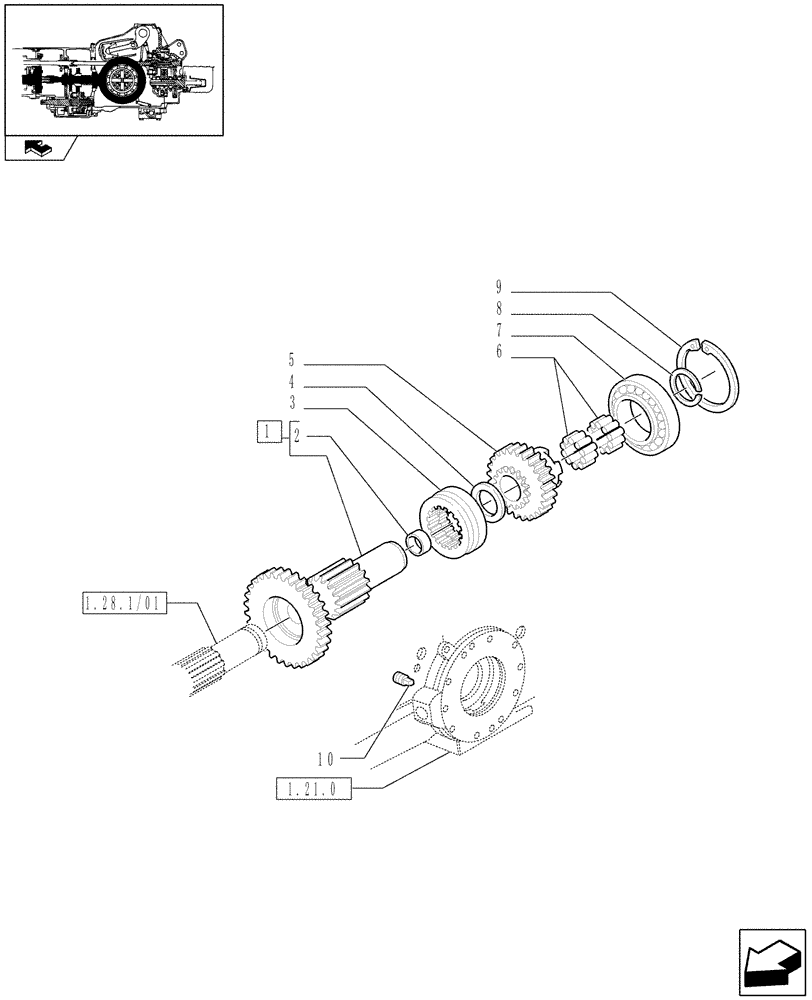

Схема запчастей Case IH FARMALL 90 - (1.32.1/01[02]) - 20X12 (40KM/H) TRANSMIS. W/FRONT BRAKE & LIMITED SLIP - DRIVE SHAFT AND GEARINGS (VAR.335115-336115-743904) (03) - TRANSMISSION
4
1.21.0
1.28.1/01
2
10
6
7
1
5
8
3
9
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5176751

MAIN SHAFT

95 Model

1шт.

1

5176778

SHAFT

Main, 90 Model

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25x28.53x18

1шт.

3

5125880

SPLINED COUPLING,17T

1шт.

4

5109683

THRUST WASHER,42.05mm ID x 56mm OD x 4mm Thk

1шт.

5

5131169

GEAR

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

42x47x27

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

1шт.

8

5117076

CIRCLIP,M47, Ext

D=47

1шт.

9

11075476

SNAP RING,M110, Int

1шт.

10

14323911

PLUG

M10

1шт.
