Запчасти Case IH FARMALL 90 (1.32.1[02]) - CENTRAL REDUCER GEARING - DRIVE SHAFT AND GEARINGS (03) - TRANSMISSION

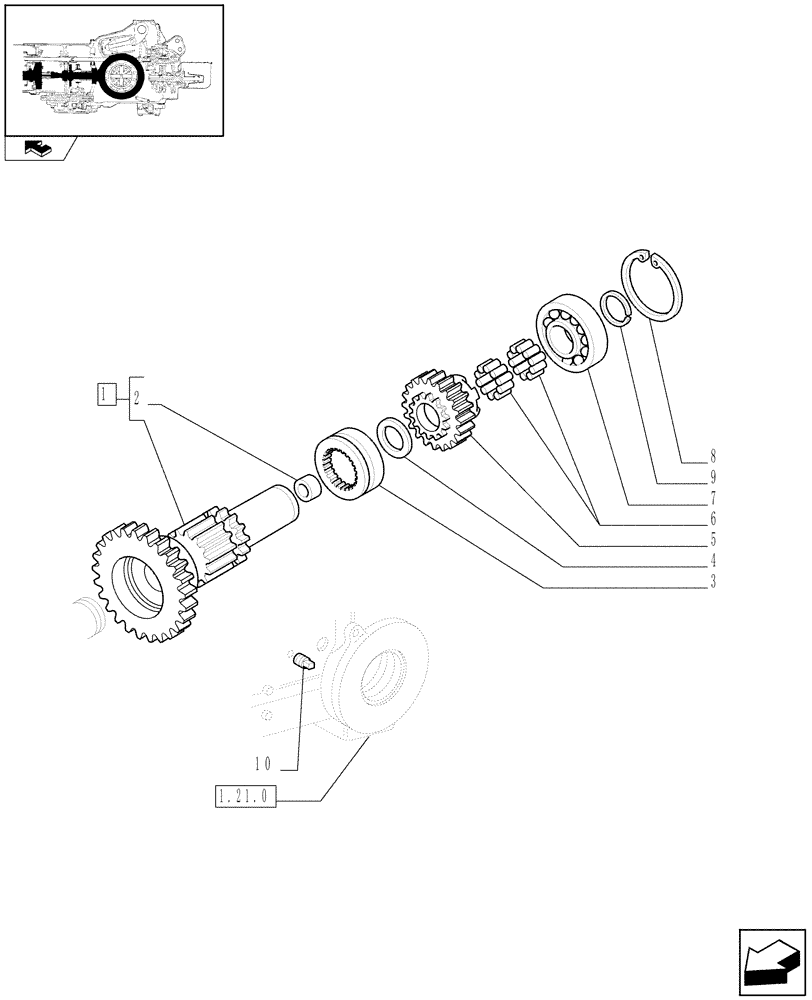

Схема запчастей Case IH FARMALL 90 - (1.32.1[02]) - CENTRAL REDUCER GEARING - DRIVE SHAFT AND GEARINGS (03) - TRANSMISSION
4
3
2
10
home
5
8
7
9
1.21.0
6
1

Артикул

Название

Примечание

Количество

1

5176776

SHAFT

90 Model

1шт.

1

5176751

MAIN SHAFT

95 Model

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

3

5125880

SPLINED COUPLING,17T

1шт.

4

5109683

THRUST WASHER,42.05mm ID x 56mm OD x 4mm Thk

1шт.

5

5125013

GEAR

90 Model

1шт.

5

5131169

GEAR

95 Model

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

1шт.

8

11075476

SNAP RING,M110, Int

1шт.

9

5117076

CIRCLIP,M47, Ext

1шт.

10

14323914

PLUG,M10 x 1.25 x 14mm L

1шт.

Выбрано товаров: 12
