(1.32.0) - BOXES, COVERS AND SUPPORTS

Запчасти Case IH FARMALL 90 (1.32.0) - BOXES, COVERS AND SUPPORTS (03) - TRANSMISSION

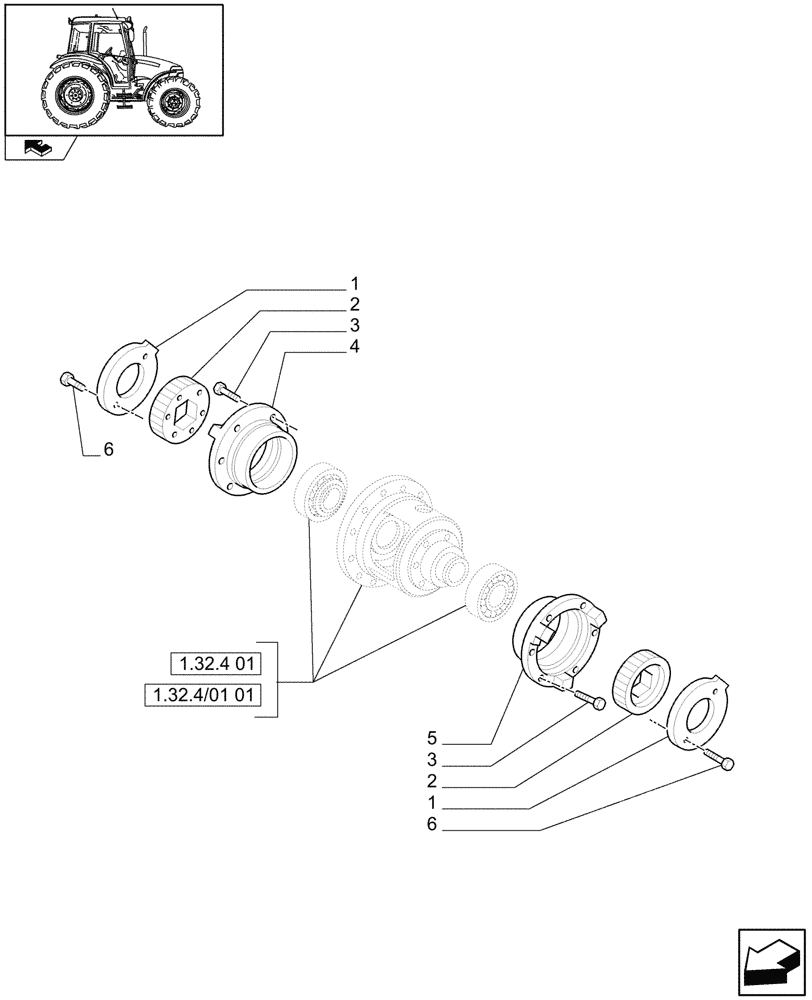

Схема запчастей Case IH FARMALL 90 - (1.32.0) - BOXES, COVERS AND SUPPORTS (03) - TRANSMISSION
1.32.4 01
3
3
5
home
1.32.4/01 01
2
6
1
6
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5087672

LOCK WASHER,50mm ID x 93mm OD x 4mm Thk

2шт.

2

5087671

LOCK NUT

2шт.

3

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

12шт.

4

5127162

SUPPORT

LH

1шт.

5

5127166

SUPPORT

RH

1шт.

6

14238021

LOCK BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.
