Запчасти Case IH FARMALL 90 (1.29.6/ A[03]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - PRESSURE CONTROL VALVE - BREAKDOWN (VAR.330120-331120) (03) - TRANSMISSION

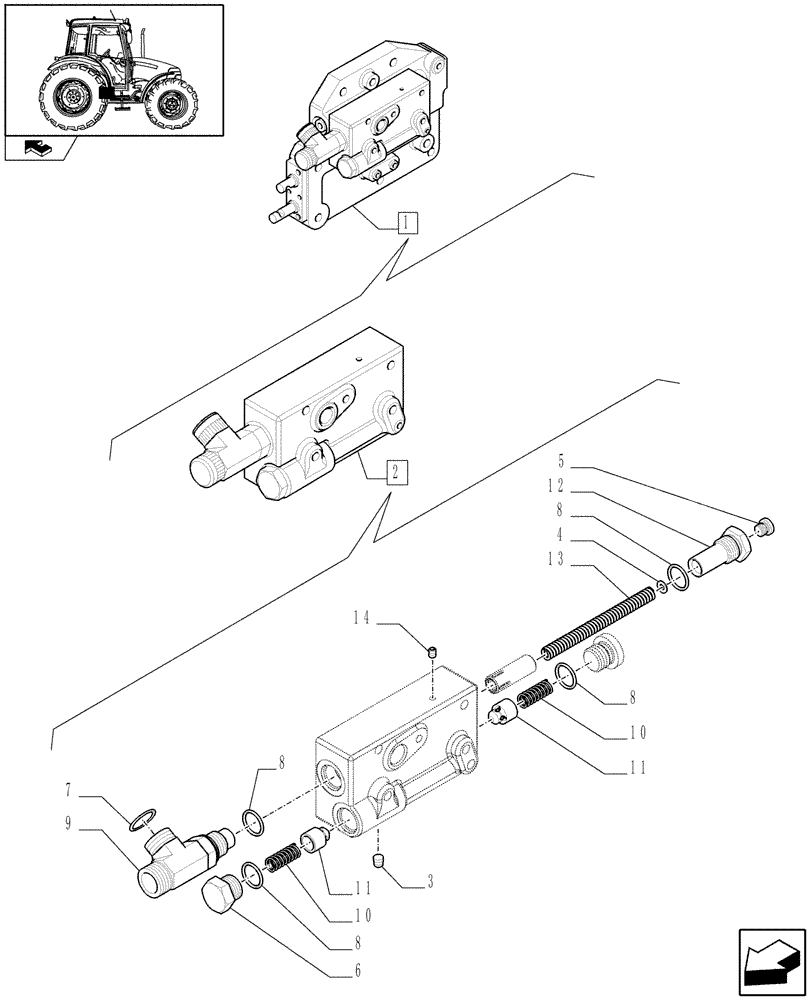

Схема запчастей Case IH FARMALL 90 - (1.29.6/ A[03]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - PRESSURE CONTROL VALVE - BREAKDOWN (VAR.330120-331120) (03) - TRANSMISSION
4
8
8
13
8
2
8
6
10
12
3
11
1
11
14
7
9
5
home
10

Артикул

Название

Примечание

Количество

1

84424271

CONTROL VALVE

ASSY, Contains Ref. 2

1шт.

2

84382381

CONTROL VALVE

ASSY, Contains Ref. 3-14

1шт.

3

10269704

PLUG

1шт.

4

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

5

10118540

PLUG,M10 x 1 x 11, Brass

1шт.

6

84332901

PLUG,M22 x 1.5

1шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

9

84329041

HYD CONNECTOR

1шт.

10

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

2шт.

11

5169565

VALVE,By-Pass

2шт.

12

84332904

PLUG,M22 x 1.5

M22 x 1,5

1шт.

13

5157119

SPRING,11.5mm x 127mm

1шт.

14

47137823

HYD CONNECTOR

1шт.

Выбрано товаров: 14
