(1.29.6/ A[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - BREAKDOWN (VAR.330120-331120)

Запчасти Case IH FARMALL 90 (1.29.6/ A[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - BREAKDOWN (VAR.330120-331120) (03) - TRANSMISSION

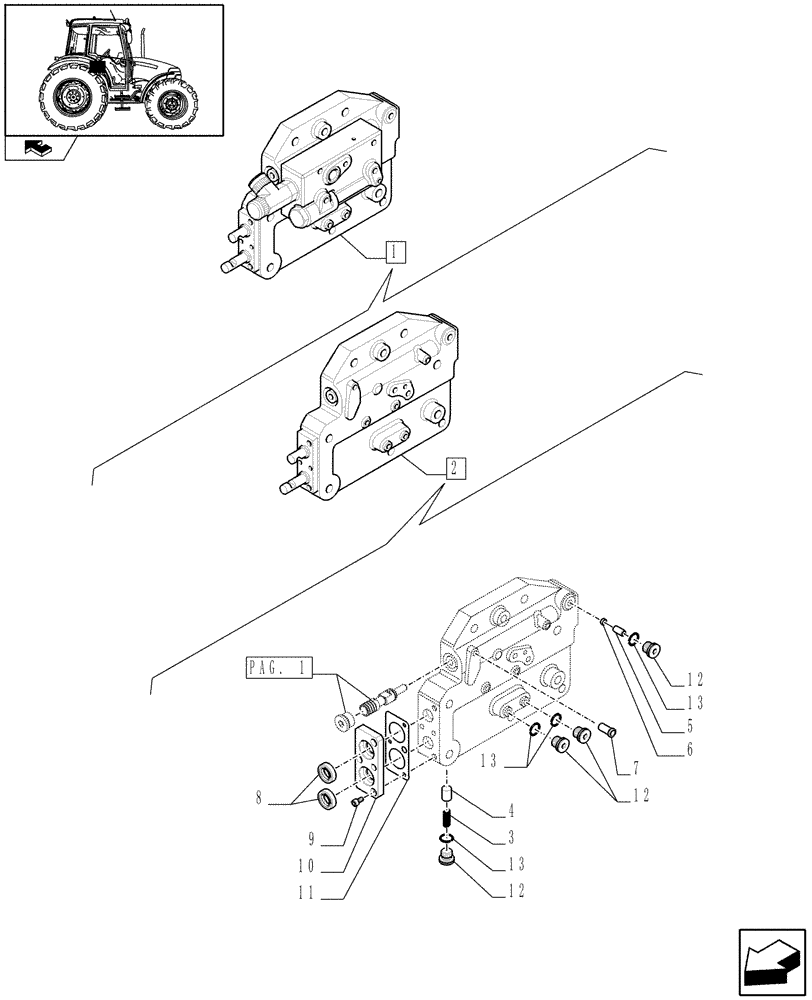

Схема запчастей Case IH FARMALL 90 - (1.29.6/ A[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - BREAKDOWN (VAR.330120-331120) (03) - TRANSMISSION
pag. 1
12
home
13
13
12
2
9
13
3
11
4
8
5
1
10
12
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84424271

CONTROL VALVE

ASSY, Contains Ref. 2

1шт.

2

84424313

CONTROL VALVE

ASSY, Contains Ref. 3-13

1шт.

See Breakdown in Group, 1.29.6/A 01

1шт.

3

84408628

SPRING,8.5mm OD x 22.5mm L

1шт.

4

84246413

DETENT

1шт.

5

838-4816

COTTER PIN,M8 x 16, Slotted

1шт.

6

84412835

CUP

1шт.

7

84413706

FILTER

1шт.

8

84273378

SEAL,16mm ID x 26mm OD x 7mm Thk

2шт.

9

14304021

HEX SOC SCREW,M5 x 10mm, Cl 8.8

3шт.

10

84240801

COVER PLATE

1шт.

11

84240459

GASKET

1шт.

12

86598044

PLUG,Hex, M14 x 1.5 ORB

ASSY, Contains Ref. 2

4шт.

13

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

5шт.
