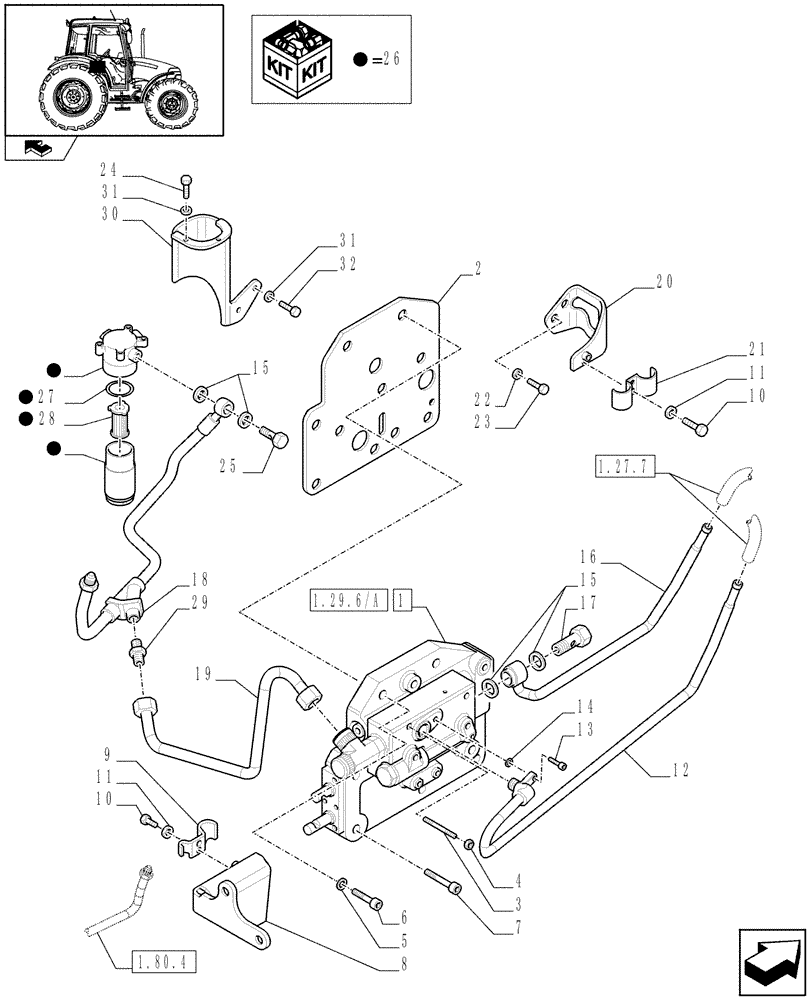

Запчасти Case IH FARMALL 90 (1.29.6[01A]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - POWER SHUTTLE VALVE - D6894 (VAR.330120-331120) (03) - TRANSMISSION

1

84424271

CONTROL VALVE

ASSY

1шт.

2

84389503

GASKET

1шт.

3

13450221

STUD,M10 x 1.25 x 55mm, Cl 5.8

2шт.

4

10790121

NUT,Hex, M10 x 1.25

2шт.

5

13578601

WASHER,10.2mm ID x 30mm OD x 2mm Thk

2шт.

6

14307821

HEX SOC SCREW,M10 x 1.25 x 45mm, Cl 8.8

2шт.

7

14308121

HEX SOC SCREW,M10 x 1.25 x 60mm, Cl 8.8

2шт.

8

84327445

SUPPORT

Incl.9,10,11

1шт.

9

84341939

COLLAR

1шт.

10

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

11

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

12

84330988

TUBE

1шт.

13

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

14

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

15

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

5шт.

16

84480027

PIPE

1шт.

17

84391031

HYD CONNECTOR

1шт.

18

84477623

PIPE

1шт.

19

84328436

PIPE

1шт.

20

84240021

SUPPORT

Incl.10,11,21

1шт.

21

84327447

CLAMP,16.5mm ID

1шт.

22

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

23

11106124

BOLT,Hex, M10 x 22mm, Cl 8.8

1шт.

24

15213724

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

2шт.

25

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

26

5196513

FILTER

ASSY

1шт.

27

5194880

O-RING KIT

1шт.

28

47128161

ELEMENT

1шт.

Valid with FARMALL 90, JX90, JX95 Models

1шт.

29

5087002

HYD CONNECTOR

1шт.

30

84477611

SUPPORT

1шт.

31

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

32

16043724

BOLT,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd

2шт.
