Запчасти Case IH FARMALL 90 (1.29.6[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - POWER SHUTTLE VALVE - C6894 (VAR.330120-331120) (03) - TRANSMISSION

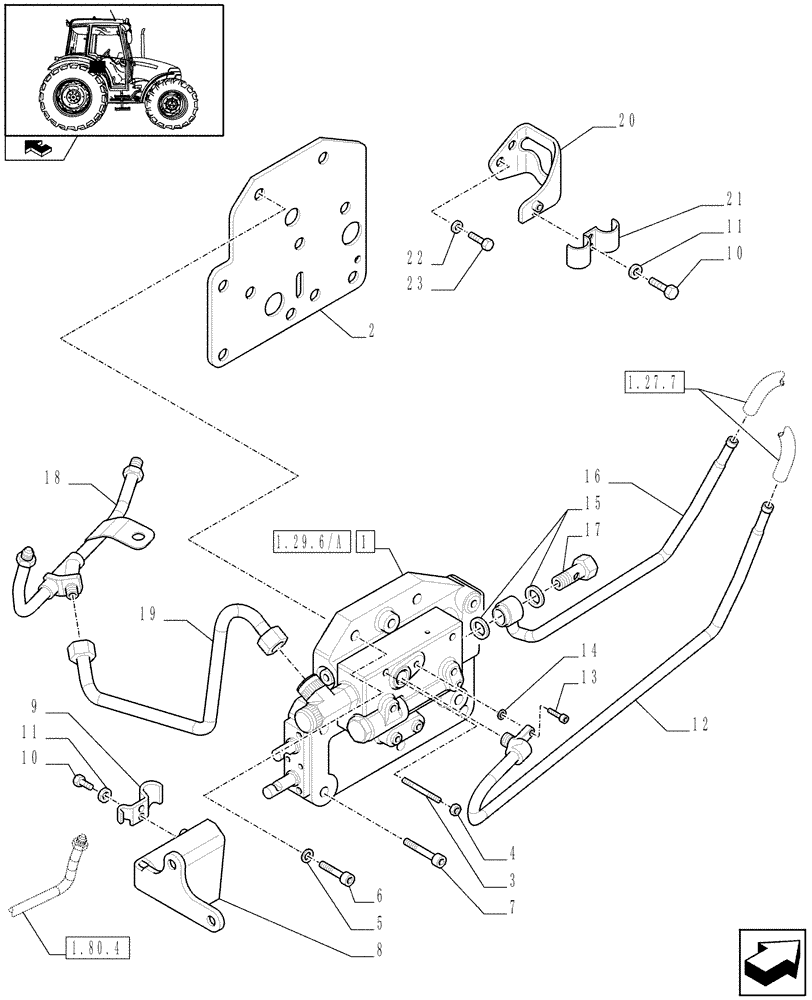

Схема запчастей Case IH FARMALL 90 - (1.29.6[01]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - POWER SHUTTLE VALVE - C6894 (VAR.330120-331120) (03) - TRANSMISSION
8
20
11
13
4
1
10
home
1.29.6/a
1.80.4
1.27.7
19
14
23
18
5
12
11
6
22
15
2
3
7
17
16
21
10
9

Артикул

Название

Примечание

Количество

1

84424271

CONTROL VALVE

ASSY

1шт.

2

84389503

GASKET

1шт.

3

13450221

STUD,M10 x 1.25 x 55mm, Cl 5.8

2шт.

4

10790121

NUT,Hex, M10 x 1.25

2шт.

5

13578601

WASHER,10.2mm ID x 30mm OD x 2mm Thk

2шт.

6

14307821

HEX SOC SCREW,M10 x 1.25 x 45mm, Cl 8.8

2шт.

7

14308121

HEX SOC SCREW,M10 x 1.25 x 60mm, Cl 8.8

2шт.

8

84327445

SUPPORT

Incl.9,10,11

1шт.

9

84341939

COLLAR

1шт.

10

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

11

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

12

84330988

TUBE

1шт.

13

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

14

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

15

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

16

84331008

PIPE

1шт.

17

84391031

HYD CONNECTOR

1шт.

18

84328420

TUBE

1шт.

19

84328436

PIPE

1шт.

20

84240021

SUPPORT

Incl.10,11,21

1шт.

21

84327447

CLAMP,16.5mm ID

1шт.

22

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

23

11106124

BOLT,Hex, M10 x 22mm, Cl 8.8

1шт.

Выбрано товаров: 23
