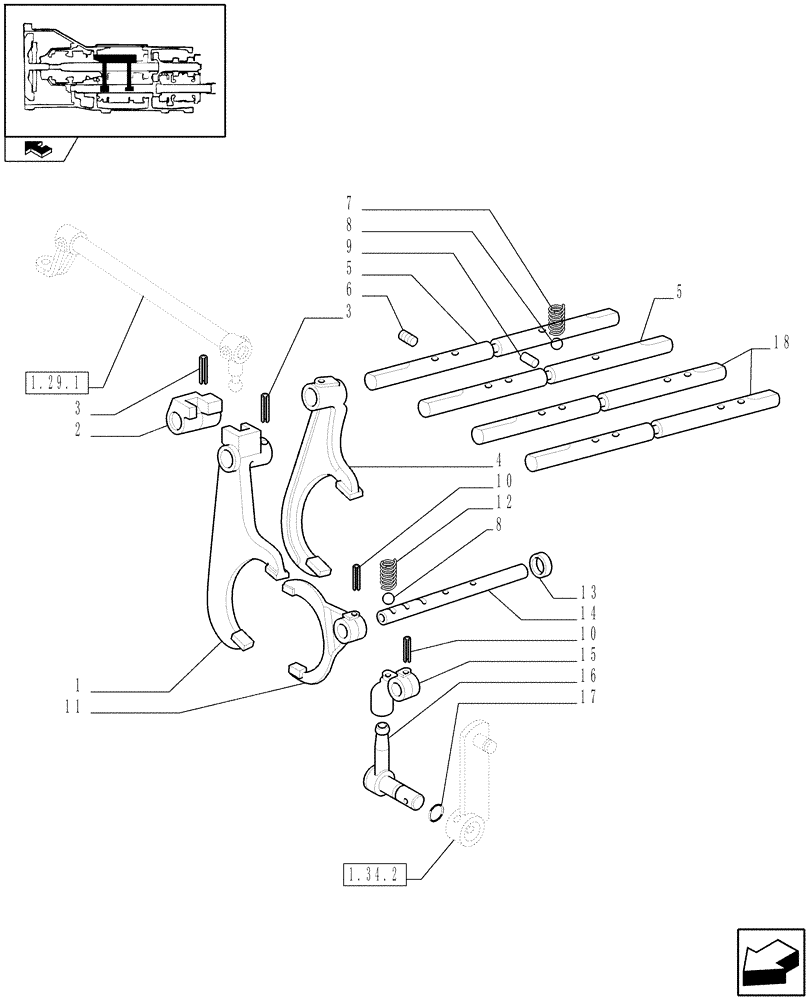

Запчасти Case IH FARMALL 90 (1.29.0) - INNER CONTROLS - ROD AND FORK (03) - TRANSMISSION

1

5174202

SHIFTER FORK

1шт.

Third and Forth Gear Selector Fork

1шт.

2

5174201

DOG

1шт.

3

13907770

ROLL PIN,M5 x 32, Coiled

3шт.

4

5127387

SHIFTER FORK

1шт.

First and Second Gear Selector Fork

1шт.

5

5095308

SHAFT

90 Model, Serial Range: -C6564

2шт.

20x12 Synchro Shuttle and Creeper Transmission, VAR.335113-335115

1шт.

Rear Electrohydraulic Diff. Lock and Electrohydraulic 4WD, VAR.336115

1шт.

5

5095309

SHAFT

, Serial Range: -C6744

2шт.

95 Model Before 28 November 2007, All Models After 28 November 2007

1шт.

6

10152311

PLUG

1шт.

7

4994342

SPRING,8mm OD x 30mm OAL

2шт.

8

20063390

BALL,8.73mm OD

3шт.

9

5110264

PAWL,8.5mm OD x 26.5mm L

1шт.

10

13907670

ROLL PIN,M5 x 30, Coiled

2шт.

11

5143463

SHIFTER FORK

1шт.

12

4956546

SPRING,Cylindrical, 8.1mm OD x 38mm L

1шт.

13

5161859

SPACER,16.2mm ID x 20mm OD x 13mm L

1шт.

14

5161826

SHIFT RAIL

1шт.

15

5162090

HUB

1шт.

16

44909485

LEVER,20mm OD x 69mm L

1шт.

17

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

18

84291900

SHIFT RAIL

, Start Serial: D6744

2шт.
