(1.28.7[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF LOCK - CLUTCH DISKS (VAR.330120-331120)

Запчасти Case IH FARMALL 90 (1.28.7[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF LOCK - CLUTCH DISKS (VAR.330120-331120) (03) - TRANSMISSION

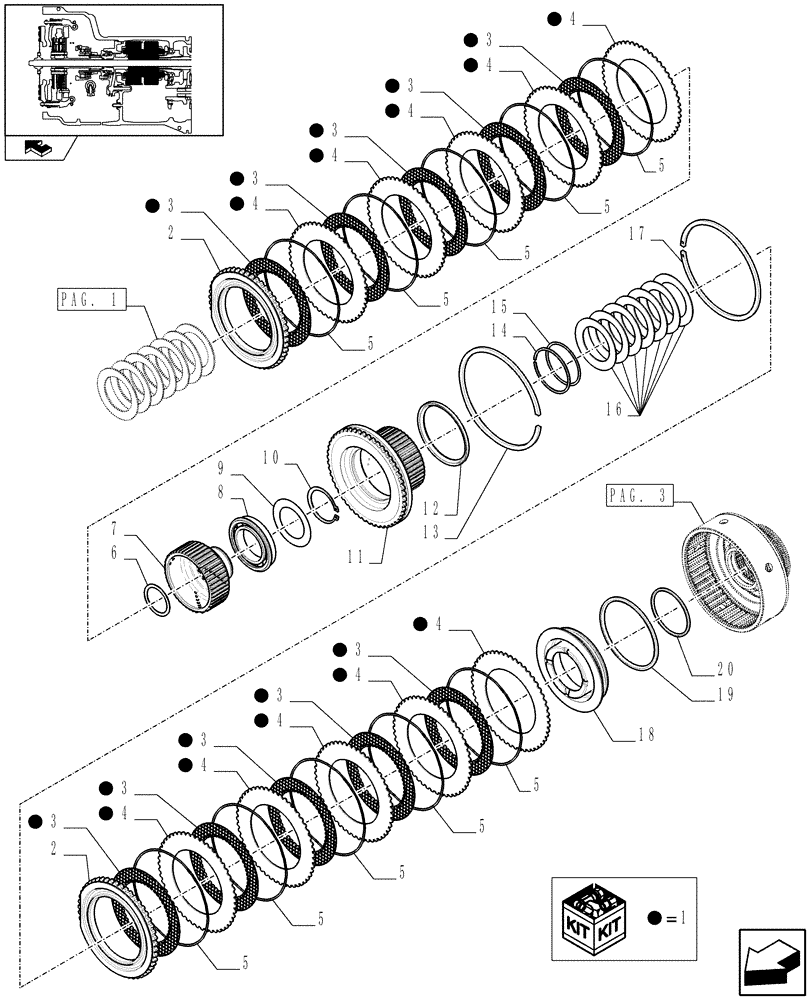

Схема запчастей Case IH FARMALL 90 - (1.28.7[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF LOCK - CLUTCH DISKS (VAR.330120-331120) (03) - TRANSMISSION
5
3
4
15
5
1
17
1
1
2
6
2
1
5
pag. 3
1
4
1
1
1
3
12
13
5
14
4
1
1
4
5
1
3
3
pag. 1
1
5
1
4
1
3
5
1
4
1
5
3
1
5
16
4
10
3
9
19
7
3
1
4
3
home
5
8
4
1
1
4
11
18
20
3
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84286493

CLUTCH PLATE

2шт.

2

5171657

DISC,100mm ID x 152.6mm OD x 10mm Thk

2шт.

3

84286489

CLUTCH PLATE

12шт.

4

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

CLUTCH DISK THICK 2,2 MM

1шт.

4

5173294

CLUTCH DISC,99mm ID x 152.6mm OD x 2mm Thk

CLUTCH DISK THICK 2,0 MM

1шт.

5

81864341

SPRING,148.35mm ID

12шт.

6

14463880

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

7

5171654

HUB,45T / 18 T

1шт.

8

5168354

BALL BEARING,50mm ID x 80mm OD x 16mm W

1шт.

9

5171655

THRUST WASHER,50mm ID x 75mm OD x 1mm Thk

1шт.

10

11069376

SNAP RING,M50, Ext

10шт.

11

5171664

HUB,50T / 45T

1шт.

12

5177500

SEAL,Locking, 90.7mm ID x 100.5mm OD x 3.8mm Thk

SEALRING

1шт.

13

5173675

SNAP RING,148.6mm ID x 156.6mm OD x 2.5mm Thk

1шт.

14

5168348

SNAP RING,1.5mm Thk, Ext

1шт.

15

5168347

CUP,56mm ID x 66mm OD x 3mm Thk

1шт.

16

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

1шт.

17

5162251

CIRCLIP,142.5mm ID

1шт.

18

5179794

PISTON

1шт.

19

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

1шт.

20

5168345

SEAL,67.55mm ID x 75mm OD x 3.2mm Thk

1шт.
