Запчасти Case IH FARMALL 90 (1.28.7[01]) - POWER SHUTTLE SERVO PTO FOR DIFF. LOCK - CLUTCH ENGAGEMENT (VAR.330120-331120) (03) - TRANSMISSION

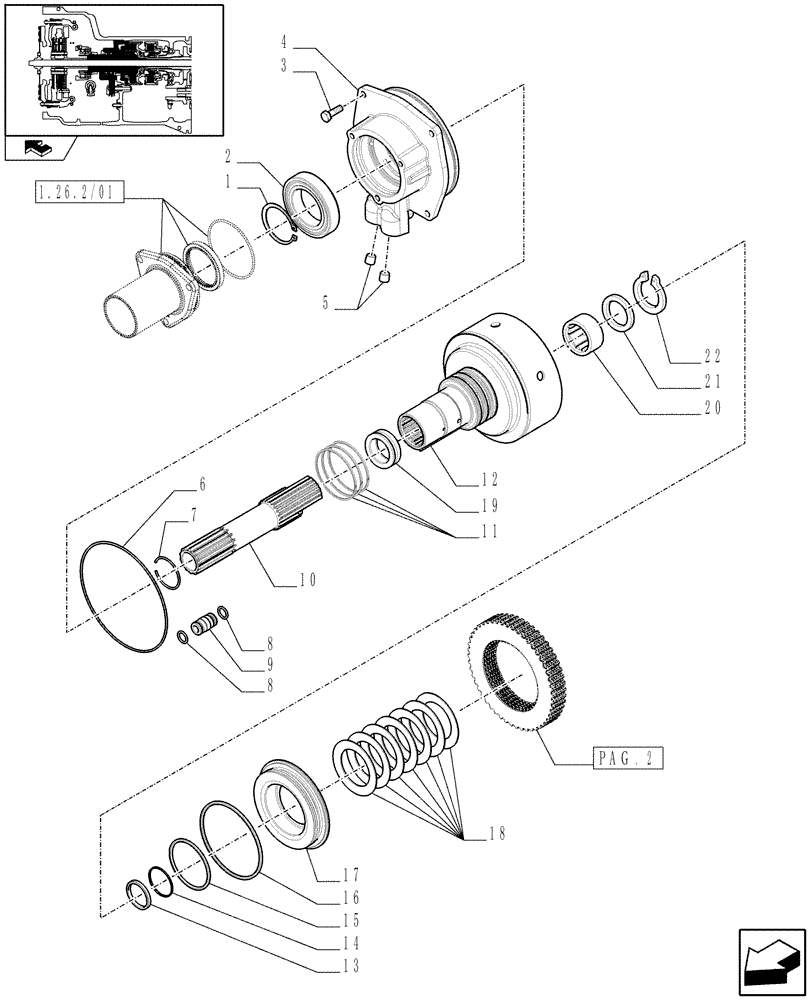

Схема запчастей Case IH FARMALL 90 - (1.28.7[01]) - POWER SHUTTLE SERVO PTO FOR DIFF. LOCK - CLUTCH ENGAGEMENT (VAR.330120-331120) (03) - TRANSMISSION
2
8
.
6
2
21
p
9
20
11
13
12
18
14
19
a
home
22
16
15
7
17
3
5
1.26.2/01
8
1
10
4
g

Артикул

Название

Примечание

Количество

1

11069576

SNAP RING,M55, Ext

1шт.

2

5122846

BALL BEARING,55mm ID x 90mm OD x 18mm W

1шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

5177559

COVER

Incl.5

1шт.

5

10269404

PLUG,M12 x 1.5

2шт.

6

14462180

O-RING,152.1mm ID x 2.62" Width

1шт.

7

13421976

SNAP RING,M45, Int

1шт.

8

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

4шт.

9

84286494

HYD CONNECTOR

2шт.

10

84335414

SHAFT

1шт.

11

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

3шт.

12

5177464

BELL HOUSING

1шт.

13

5173674

GASKET,35mm ID x 42mm OD x 4mm Thk

1шт.

14

5124473

SNAP RING,1.5mm Thk, Int

1шт.

15

5168345

SEAL,67.55mm ID x 75mm OD x 3.2mm Thk

1шт.

16

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

1шт.

17

5179794

PISTON

1шт.

18

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

7шт.

19

87528273

OIL SEAL,25mm ID x 40mm OD x 7mm Thk

1шт.

20

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

21

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.

22

5180152

CIRCLIP,27.8mm ID

1шт.

Выбрано товаров: 22
