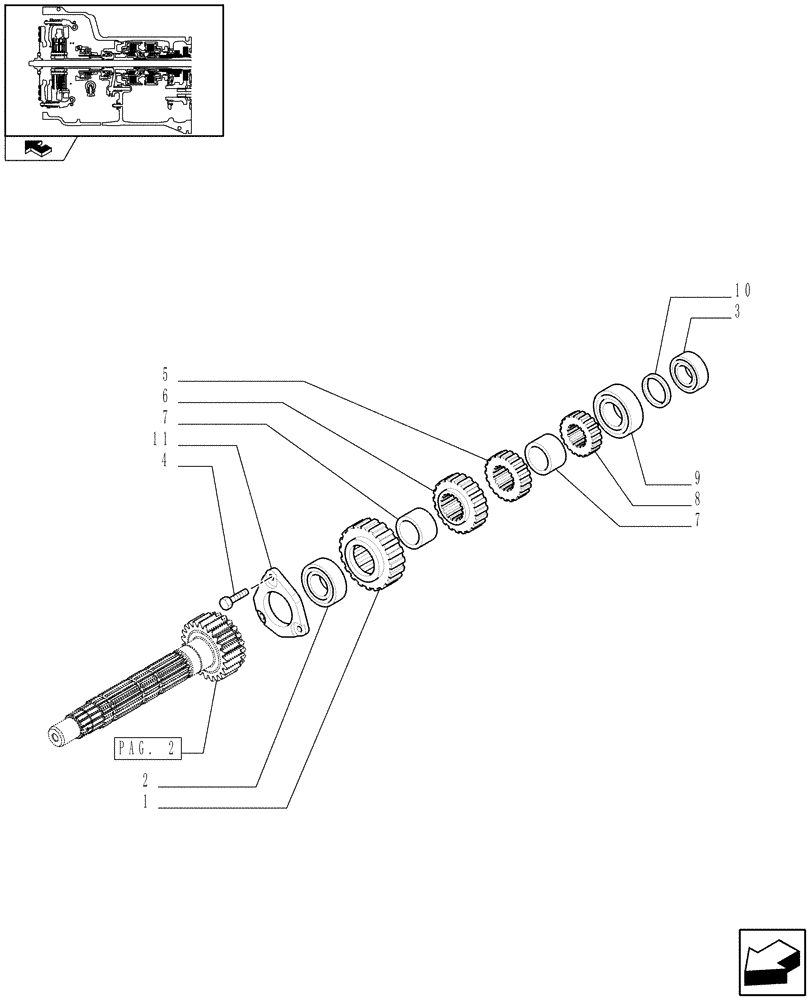

Запчасти Case IH FARMALL 90 (1.28.1/04[04]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - SPEED DRIVEN GEARS AND SPACER (VAR.330120-331120) (03) - TRANSMISSION

1

5123982

DRIVING GEAR

Speed 4, drive gear

1шт.

2

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

3

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

4

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

5

5169606

DRIVING GEAR

Speed 2, drive gear

1шт.

6

5179672

DRIVING GEAR

Speed 3, drive gear

1шт.

7

5111983

SPACER,44.55mm ID x 55mm OD x 35mm L

2шт.

8

5118912

DRIVING GEAR

Speed 1, drive gear

1шт.

9

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

1шт.

10

5109669

WASHER,40.05mm ID x 55mm OD x 3mm Thk

1шт.

10

5118937

WASHER,40.05mm ID x 55mm OD x 3.25mm Thk

1шт.

10

5118938

WASHER,40.05mm ID x 55mm OD x 3.5mm Thk

1шт.

10

5118939

WASHER,40.05mm ID x 55mm OD x 3.75mm Thk

1шт.

10

5118940

THRUST WASHER,40.05mm ID x 55mm OD x 4mm Thk

1шт.

11

5162671

COVER

1шт.
