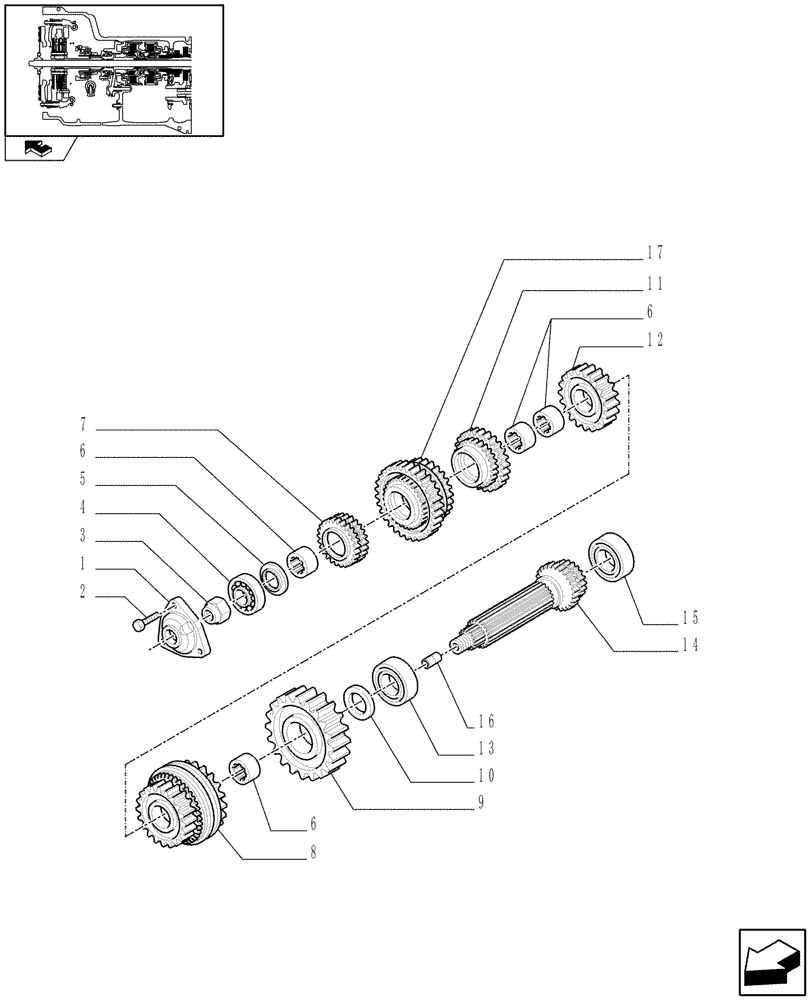

Запчасти Case IH FARMALL 90 (1.28.1/04[03]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - SYNCHRONIZER AND DRIVEN SHAFT (VAR.330120-331120) (03) - TRANSMISSION

1

5117552

COVER

1шт.

2

14238121

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

3

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

4

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

5

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

1шт.

6

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

7

5172050

DRIVEN GEAR

1шт.

8

84222592

SYNCHRONIZER

1шт.

9

5172047

DRIVEN GEAR

52T and 38T

1шт.

10

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

11

5179673

DRIVEN GEAR

1шт.

12

5172048

DRIVEN GEAR

1шт.

13

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

2шт.

14

5131167

DRIVEN SHAFT

1шт.

15

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

1шт.

16

5145131

RIGID TUBE

1шт.

17

84222590

SYNCHRONIZER

1шт.
