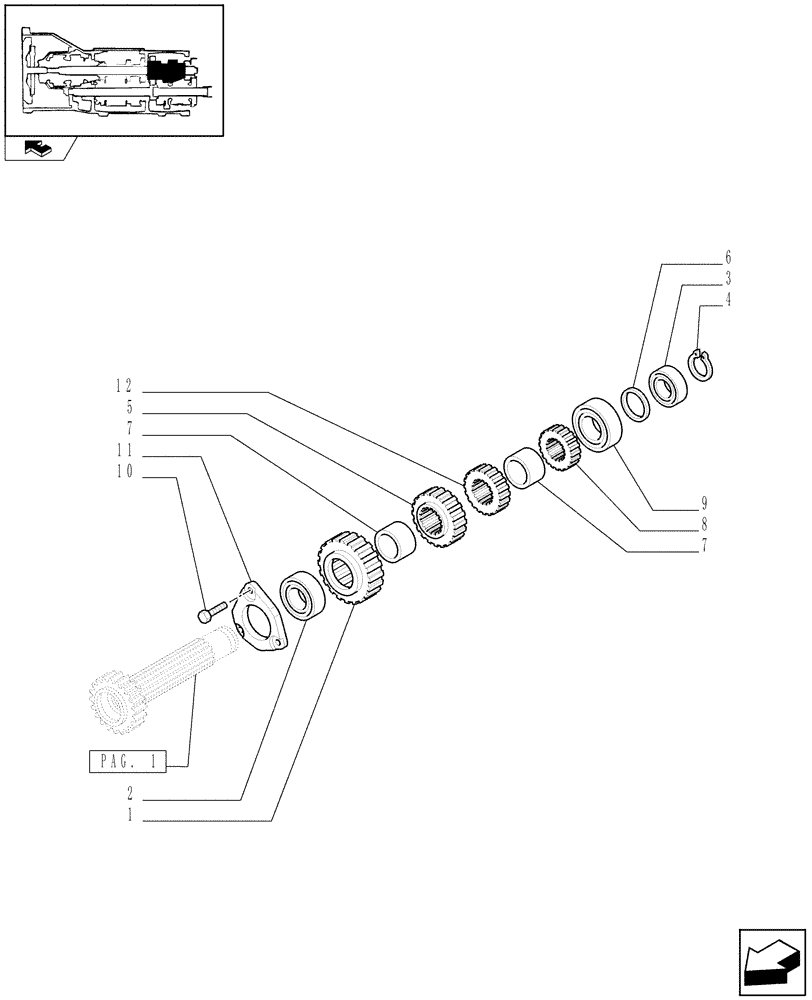

Запчасти Case IH FARMALL 90 (1.28.1/02[03]) - 12X12 (40KM/H) TRANSMISSION W/INSIDE AXLE FRONT BRAKE AND LIMITED SLIP-SHAFTS AND GEARS (STD, 743552-331321-743905) (03) - TRANSMISSION

1

5123982

DRIVING GEAR

4th Speed

1шт.

2

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

45x85x19

1шт.

3

84207575

ROLLER BEARING

40x80x18

1шт.

4

11062176

CIRCLIP,M85, Int

3шт.

5

5179672

DRIVING GEAR

2nd Speed

1шт.

6

5109669

WASHER,40.05mm ID x 55mm OD x 3mm Thk

1шт.

6

5118937

WASHER,40.05mm ID x 55mm OD x 3.25mm Thk

1шт.

6

5118938

WASHER,40.05mm ID x 55mm OD x 3.5mm Thk

1шт.

6

5118939

WASHER,40.05mm ID x 55mm OD x 3.75mm Thk

1шт.

6

5118940

THRUST WASHER,40.05mm ID x 55mm OD x 4mm Thk

1шт.

7

5111983

SPACER,44.55mm ID x 55mm OD x 35mm L

2шт.

8

5118912

DRIVING GEAR

1st Speed

1шт.

9

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

40x90x23

1шт.

10

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

11

5162671

COVER

1шт.

12

5169606

DRIVING GEAR

3rd Speed

1шт.
