Запчасти Case IH FARMALL 90 (1.28.1/02[01]) - 12X12 (40KM/H) TRANSMISSION W/INSIDE AXLE FRONT BRAKE AND LIMITED SLIP-SHAFTS AND GEARS (STD, 743552-331321-743905) (03) - TRANSMISSION

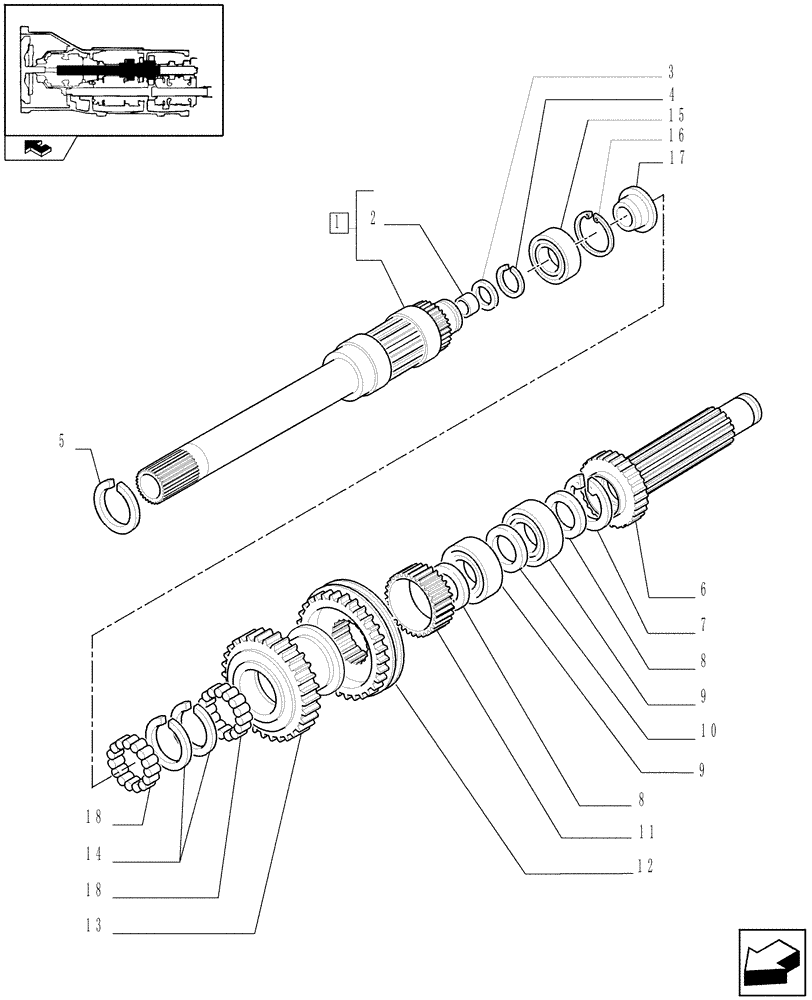

Схема запчастей Case IH FARMALL 90 - (1.28.1/02[01]) - 12X12 (40KM/H) TRANSMISSION W/INSIDE AXLE FRONT BRAKE AND LIMITED SLIP-SHAFTS AND GEARS (STD, 743552-331321-743905) (03) - TRANSMISSION
16
9
4
17
3
1
8
18
13
8
12
9
18
home
11
6
10
5
15
2
7
14

Артикул

Название

Примечание

Количество

1

5089358

CLUTCH INPUT SHAFT

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

3

84226406

OIL SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

4

11068876

SNAP RING,M40, Ext

1шт.

5

5135061

CIRCLIP,M45, Ext

3шт.

6

5161817

MAIN SHAFT

1шт.

7

11070876

CIRCLIP,M80, Ext

1шт.

8

5143461

WASHER,40.1mm ID x 56mm OD x 3mm Thk

2шт.

9

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

10

5088424

SHIM KIT

1шт.

10

5109669

WASHER,40.05mm ID x 55mm OD x 3mm Thk

1шт.

10

5118937

WASHER,40.05mm ID x 55mm OD x 3.25mm Thk

1шт.

10

5118938

WASHER,40.05mm ID x 55mm OD x 3.5mm Thk

1шт.

10

5118939

WASHER,40.05mm ID x 55mm OD x 3.75mm Thk

1шт.

10

5118940

THRUST WASHER,40.05mm ID x 55mm OD x 4mm Thk

1шт.

10

5161824

SPACER

1шт.

11

5143460

SLEEVE

1шт.

12

5186629

SYNCHRONIZER

Forward/Reverse

1шт.

13

5164583

DRIVEN GEAR

Reverse Drive Gear 26 Teeth

1шт.

14

5137224

WASHER,54.7mm ID x 59.3mm OD x 1.5mm Thk

2шт.

15

87302536

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

16

11062176

CIRCLIP,M85, Int

1шт.

17

5137222

SPACER,45.1mm ID x 70mm OD x 20.5mm L

1шт.

18

5137225

NEEDLE BEARING CAGE,52mm ID x 57mm OD x 17mm W

2шт.

Выбрано товаров: 24
