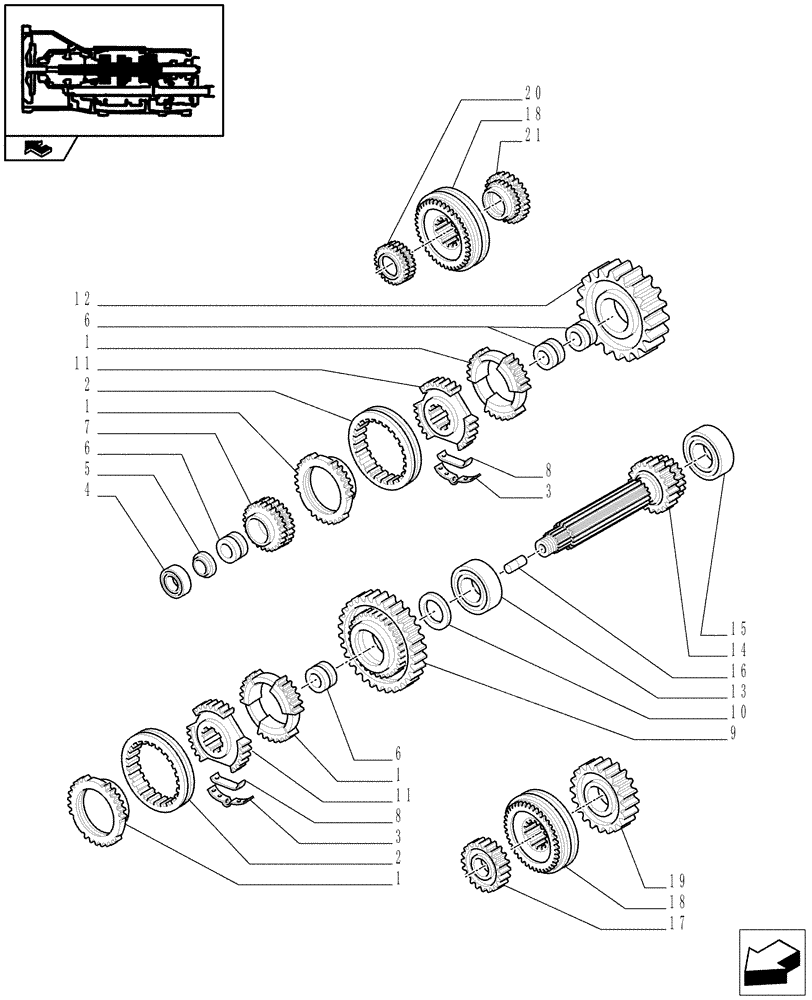

Запчасти Case IH FARMALL 90 (1.28.1/01[04]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - SHAFTS AND GEARS (VAR.335113-335115-336115-743904) (03) - TRANSMISSION

1

5138207

SYNCHRONIZER

4шт.

2

5127396

SLEEVE,42T

, Serial Range: -C6564

2шт.

3

5153938

PLATE

6шт.

4

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

35x80x21

1шт.

5

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

540 RPM

1шт.

6

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

7

5123983

DRIVEN GEAR

, Serial Range: -C6564

1шт.

8

5111457

SPRING CLIP

, Serial Range: -C6564

6шт.

9

5181198

GEAR

, Serial Range: -C6564

1шт.

10

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

11

5138221

GEAR,Fixing Speed Control

, Serial Range: -C6564

2шт.

12

5095364

GEAR

2nd, 45T and 42T, Serial Range: -C6564

1шт.

13

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

1шт.

14

5125045

SHAFT

90 Model

1шт.

14

5160028

SHAFT

95 Model

1шт.

15

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

1шт.

16

5145131

RIGID TUBE

M45x85x19

1шт.

17

5172048

DRIVEN GEAR

, Start Serial: D6564

1шт.

18

5188093

SYNCHRONIZER

, Start Serial: D6564

2шт.

19

5172047

DRIVEN GEAR

52T and 38T, Start Serial: D6564

1шт.

20

5172050

DRIVEN GEAR

, Start Serial: D6564

1шт.

21

5179673

DRIVEN GEAR

, Start Serial: D6564

1шт.
