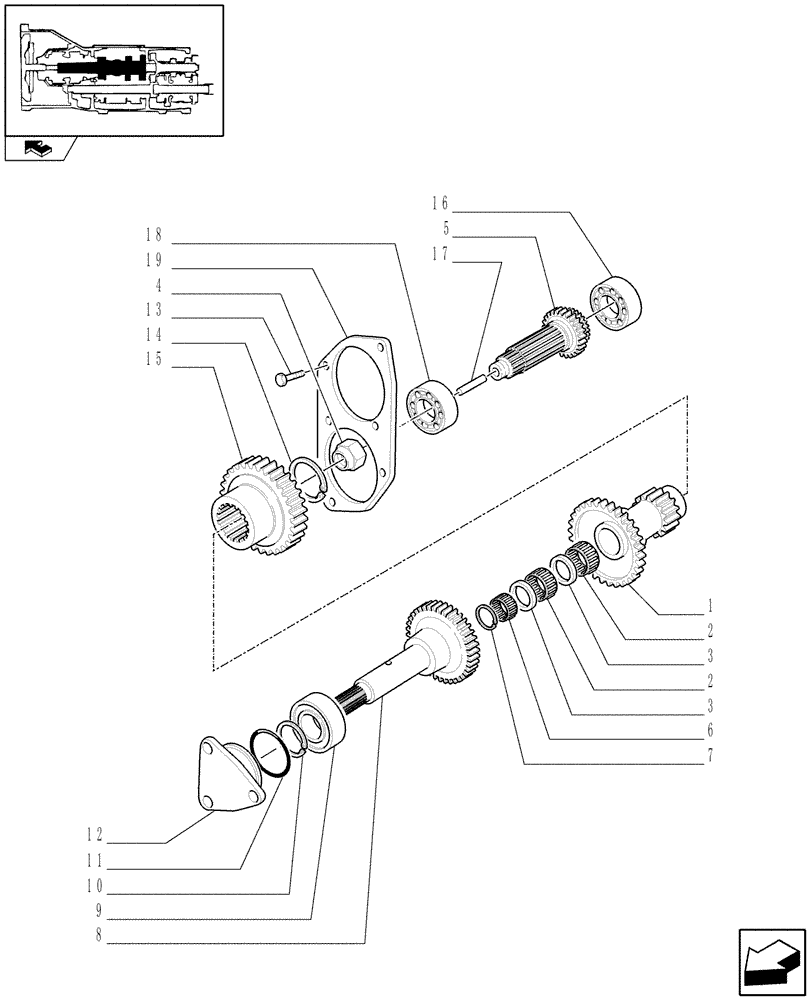

Запчасти Case IH FARMALL 90 (1.28.1/01[03]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - SHAFTS AND GEARS (VAR.335113-335115-336115-743904) (03) - TRANSMISSION

1

5175974

GEAR

1шт.

2

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

2шт.

3

5175973

THRUST WASHER

2шт.

4

5137678

RING NUT

M34x14.5

1шт.

5

5125045

SHAFT

90 Model

1шт.

Transmission 20x12 Combinata with front Axle and Limited Slip, VAR.335115 (743904)

1шт.

Transmission 20x12 Combinata with Synchro Shuttle and Creeper (40KM/H), VAR.336115 (743904)

1шт.

Transmission 20x12 Combinata with Synchro Shuttle and Creeper (30KM/H), VAR.335113 (743904)

1шт.

5

5160028

SHAFT

95 Model

1шт.

Transmission 20x12 Combinata with front Axle and Limited Slip, VAR.335115 (743904)

1шт.

Transmission 20x12 Combinata with Synchro Shuttle and Creeper (40KM/H), VAR.336115 (743904)

1шт.

6

5107311

NEEDLE BEARING,28mm ID x 35mm OD x 27mm W

1шт.

7

5116573

CIRCLIP,34.1mm ID x 36.4mm OD

D=35

1шт.

8

5175970

SHAFT

1шт.

9

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

40x80x18

1шт.

10

11068876

SNAP RING,M40, Ext

1шт.

11

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

12

5161822

COVER

1шт.

13

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8x30

6шт.

13

14238124

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

14

327911

CIRCLIP,55mm ID

1шт.

15

5175972

GEAR

1шт.

16

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

1шт.

17

5145131

RIGID TUBE

1шт.

18

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

40x90x23, 90 Model

1шт.

18

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

35x80x21, 95 Model

1шт.

19

5137550

COVER

1шт.
