(1.28.1/01[01]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - SHAFTS AND GEARS (VAR.335113-335115-336115-743904)

Запчасти Case IH FARMALL 90 (1.28.1/01[01]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - SHAFTS AND GEARS (VAR.335113-335115-336115-743904) (03) - TRANSMISSION

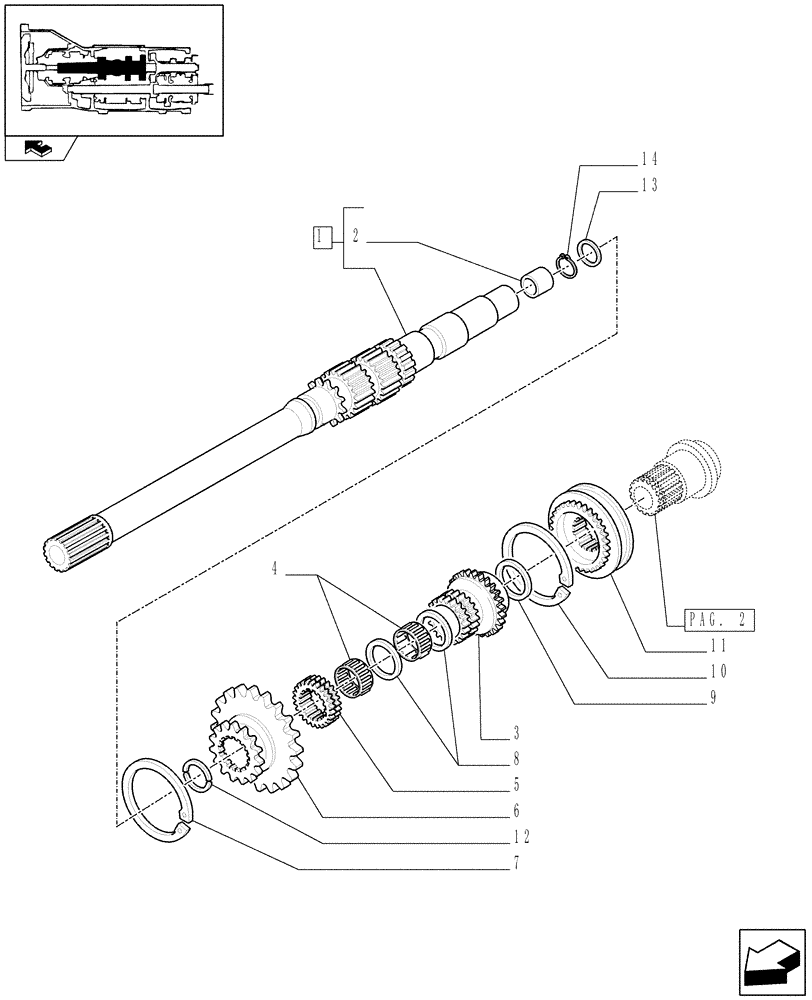

Схема запчастей Case IH FARMALL 90 - (1.28.1/01[01]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - SHAFTS AND GEARS (VAR.335113-335115-336115-743904) (03) - TRANSMISSION
13
4
11
12
9
6
1
10
5
7
14
pag. 2
home
8
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5097576

SHAFT

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

3

5175962

SPLINED COUPLING

1шт.

4

5160928

NEEDLE BEARING

2шт.

5

5175960

GEAR,16T Internal / 23T External

1шт.

6

5175967

GEAR

1шт.

7

11070876

CIRCLIP,M80, Ext

1шт.

Transmission 20x12 Combinata with Synchro Shuttle and Creeper for Front Brake and Limited Slip (40KM/H), VAR.335115 (743904)

1шт.

Transmission 20x12 Combinata with Synchro Shuttle and Creeper (30KM/H), VAR.335113 (743904)

1шт.

7

370013

SNAP RING,M90 x 3mm Thk, Internal

1шт.

Transmission 20x12 Combinata with Synchro Shuttle and Creeper (40KM/H), VAR.336115 (743904)

1шт.

8

5160929

SNAP RING,55.3mm OD x 1.5mm Width

D=53

2шт.

9

5182075

WASHER,42.13mm ID x 56mm OD x 4mm Thk

1шт.

10

44850564

SPARE PART

SPARE PART

1шт.

11

5186638

SYNCHRONIZER

1шт.

12

5175959

HALF-RING

1шт.

13

84226406

OIL SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

14

8603209

SNAP RING

1шт.
