Запчасти Case IH FARMALL 90 (1.28.1[03]) - GEARBOX GEARING - SPACER AND DRIVE GEARS (03) - TRANSMISSION

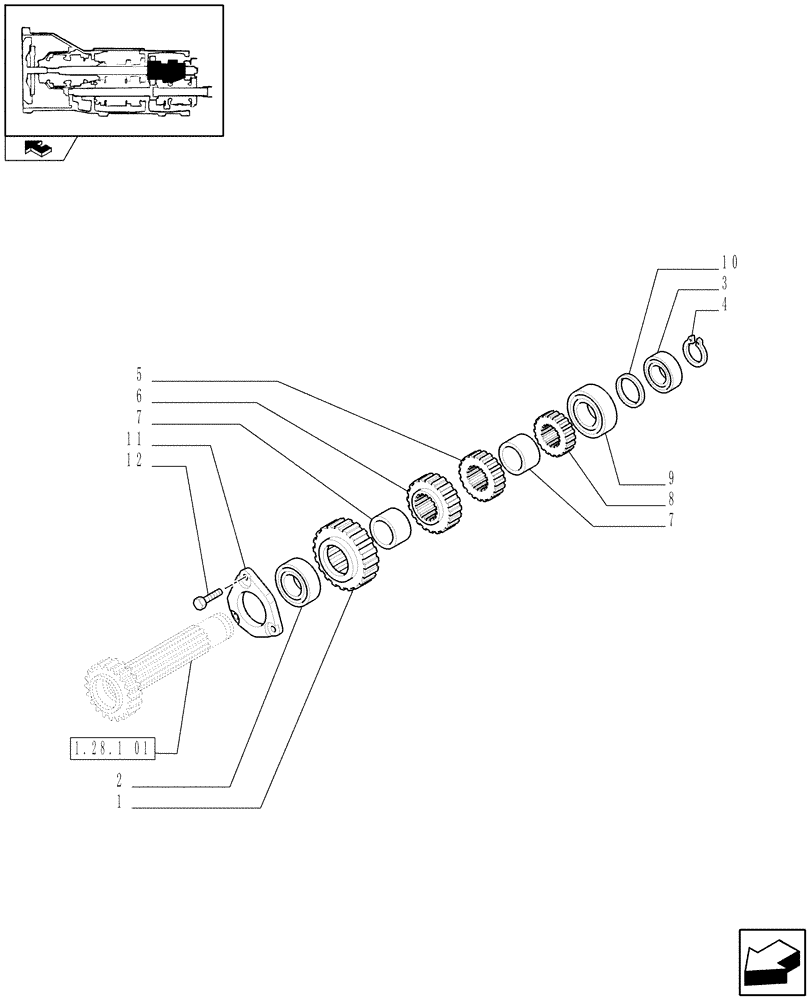

Схема запчастей Case IH FARMALL 90 - (1.28.1[03]) - GEARBOX GEARING - SPACER AND DRIVE GEARS (03) - TRANSMISSION
7
5
10
11
3
home
9
1.28.1 01
8
2
1
12
7
4
6

Артикул

Название

Примечание

Количество

1

5123982

DRIVING GEAR

1шт.

2

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

3

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

4

11068876

SNAP RING,M40, Ext

1шт.

5

5118913

DRIVING GEAR

90 Model

1шт.

5

5169606

DRIVING GEAR

95 Model

1шт.

6

5179672

DRIVING GEAR

1шт.

7

5111983

SPACER,44.55mm ID x 55mm OD x 35mm L

2шт.

8

5118912

DRIVING GEAR

1шт.

9

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

2шт.

10

5109669

WASHER,40.05mm ID x 55mm OD x 3mm Thk

1шт.

10

5118937

WASHER,40.05mm ID x 55mm OD x 3.25mm Thk

1шт.

10

5118938

WASHER,40.05mm ID x 55mm OD x 3.5mm Thk

1шт.

10

5118939

WASHER,40.05mm ID x 55mm OD x 3.75mm Thk

1шт.

10

5118940

THRUST WASHER,40.05mm ID x 55mm OD x 4mm Thk

1шт.

11

5162671

COVER

1шт.

12

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

Выбрано товаров: 17
