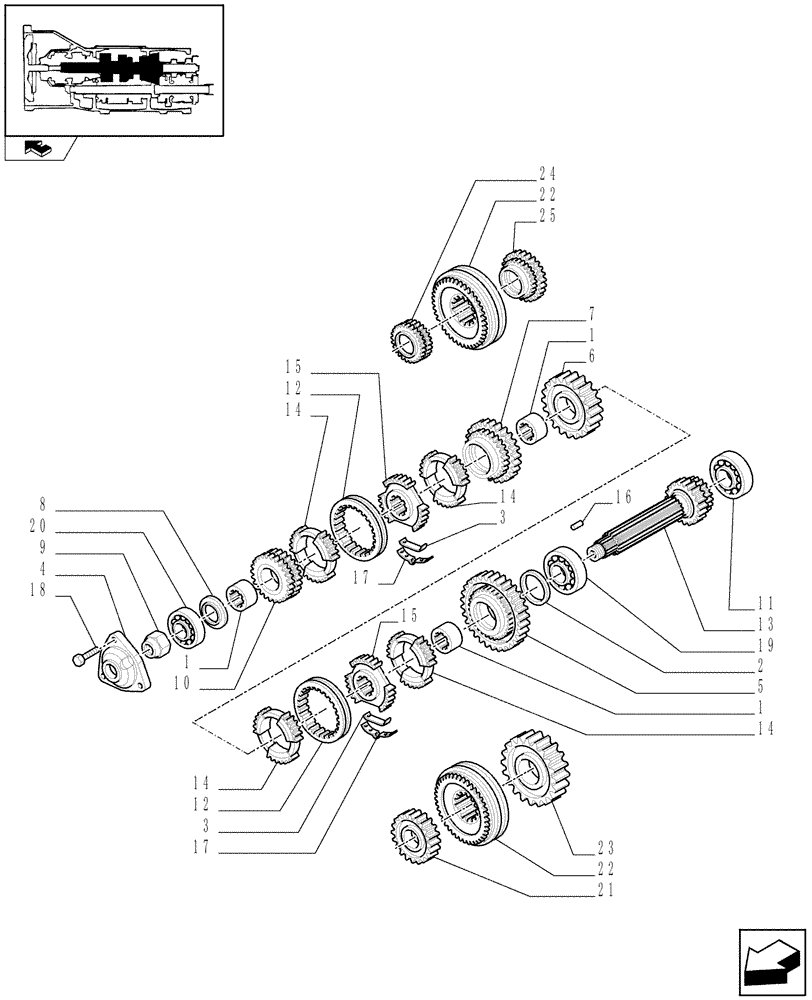

Запчасти Case IH FARMALL 90 (1.28.1[02]) - GEARBOX GEARING - SYNCHRONIZER AND DRIVEN SHAFT - C6839 (03) - TRANSMISSION

1

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

2

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

3

5111457

SPRING CLIP

, Serial Range: -C6564

6шт.

4

5117552

COVER

1шт.

5

5181198

GEAR

Speed, Serial Range: -C6564

1шт.

6

5095364

GEAR

45T and 42T, Serial Range: -C6564

1шт.

7

5095346

GEAR

1шт.

8

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

1шт.

9

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

10

5123983

DRIVEN GEAR

, Serial Range: -C6564

1шт.

11

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

1шт.

12

5142525

SLEEVE

, Serial Range: -C6564

2шт.

13

5127958

DRIVEN SHAFT

90 Model

1шт.

13

5001132

CONTROL SHAFT

95 Model

1шт.

14

5138207

SYNCHRONIZER

Speed, Serial Range: -C6564

4шт.

15

5138221

GEAR,Fixing Speed Control

, Serial Range: -C6564

1шт.

16

5145131

RIGID TUBE

1шт.

17

5153938

PLATE

, Serial Range: -C6564

3шт.

18

14238121

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

19

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

2шт.

20

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

21

5172048

DRIVEN GEAR

, Start Serial: D6564

1шт.

22

5188093

SYNCHRONIZER

, Start Serial: D6564

2шт.

23

5172047

DRIVEN GEAR

52T and 38T, Start Serial: D6564

1шт.

24

5172050

DRIVEN GEAR

, Start Serial: D6564

1шт.

25

5179673

DRIVEN GEAR

, Start Serial: D6564

1шт.
